SN74LXCH8T245RHLR

In Stock: 4,502

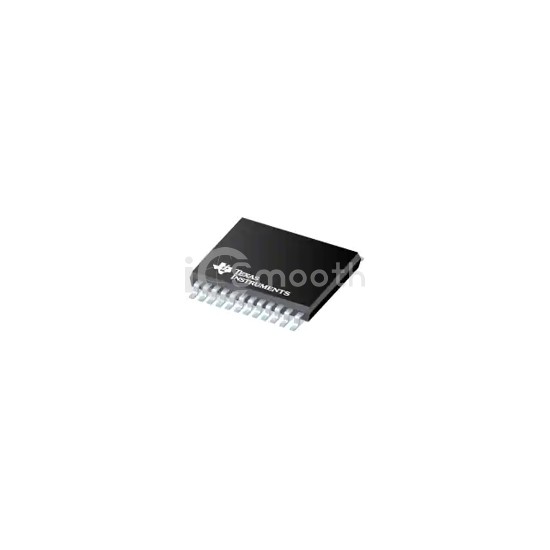

SN74LXCH8T245RHLR - Texas Instruments - Logic - Translators, Level Shifters
REF: SN74LXCH8T245RHLR Texas Instruments
SN74LXCH8T245RHLR

Texas Instruments

8-BIT DUAL-SUPPLY BUS TRANSCEIVE

SN74LXCH8T245RHLR is a Logic - Translators, Level Shifters manufactured by Texas Instruments. 8-BIT DUAL-SUPPLY BUS TRANSCEIVE. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 24-VFQFN Exposed Pad, output type Non-Inverted.

Request a Quote

In Stock: 4,502

Tiered Pricing USD
1+ $2.1400 —
10+ $1.5840 -26%
25+ $1.4448 -32%
100+ $1.2913 -40%
250+ $1.2180 -43%
500+ $1.2148 -43% BEST

Specifications

16 parameters
Product StatusActive
Translator TypeVoltage Level
Channel TypeBidirectional
Number of Circuits1
Channels per Circuit8
Voltage - VCCA1.1 V ~ 5.5 V
Voltage - VCCB1.1 V ~ 5.5 V
Input Signal-
Output Signal-
Output TypeNon-Inverted
Data Rate420Mbps
Operating Temperature-40°C ~ 125°C (TA)
Features-
Mounting TypeSurface Mount
Package / Case24-VFQFN Exposed Pad
Supplier Device Package24-VQFN (5.5x3.5)
