Name: SN74LS109ADRE4
Brand: Texas Instruments
SKU: SN74LS109ADRE4
Price: 0.60 USD
Availability: InStock

REF: SN74LS109ADRE4 Texas Instruments

SN74LS109ADRE4

Texas Instruments

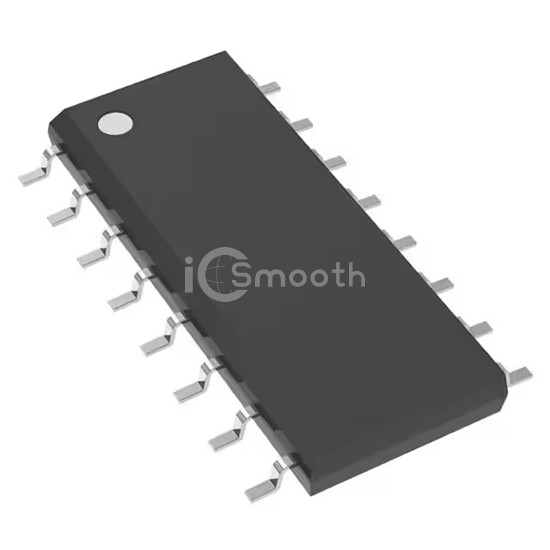

IC FF JK TYPE DUAL 1BIT 16SOIC

SN74LS109ADRE4 is a Logic - Flip Flops manufactured by Texas Instruments. IC FF JK TYPE DUAL 1BIT 16SOIC. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C (TA), voltage - supply 4.75V ~ 5.25V, package / case 16-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 2,027

Tiered Pricing USD

2,500+ $0.5991 —

5,000+ $0.5851 -2%

7,500+ $0.5780 -4%

12,500+ $0.5702 -5%

17,500+ $0.5657 -6% BEST

Specifications

17 parameters

Product Status	Discontinued at Digi-Key
Function	Set(Preset) and Reset
Type	JK Type
Output Type	Complementary
Number of Elements	2
Number of Bits per Element	1
Clock Frequency	33 MHz
Max Propagation Delay @ V, Max CL	25ns @ 5V, 15pF
Trigger Type	Positive Edge

Current - Output High, Low	400µA, 8mA
Voltage - Supply	4.75V ~ 5.25V
Current - Quiescent (Iq)	8 mA
Input Capacitance	-
Operating Temperature	0°C ~ 70°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	16-SOIC
Package / Case	16-SOIC (0.154", 3.90mm Width)
