SN74LS109AD

In Stock: 6,960
SN74LS109AD - Texas Instruments - Logic - Flip Flops
REF: SN74LS109AD Texas Instruments
SN74LS109AD

Texas Instruments

IC FF JK TYPE DUAL 1BIT 16SOIC

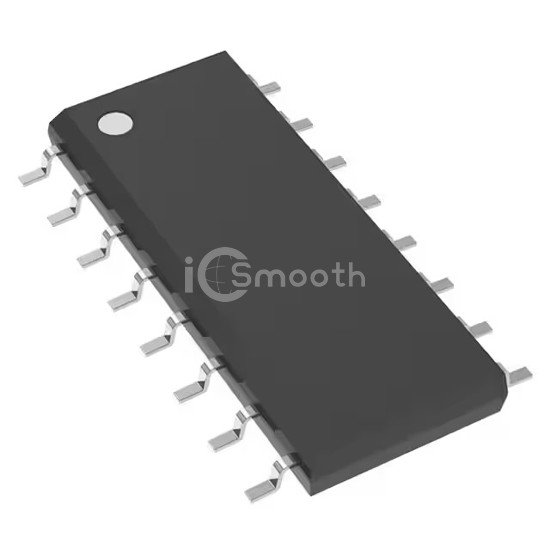

SN74LS109AD is a Logic - Flip Flops manufactured by Texas Instruments. IC FF JK TYPE DUAL 1BIT 16SOIC. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C (TA), voltage - supply 4.75V ~ 5.25V, package / case 16-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 6,960

Specifications

17 parameters
Product StatusActive
FunctionSet(Preset) and Reset
TypeJK Type
Output TypeComplementary
Number of Elements2
Number of Bits per Element1
Clock Frequency33 MHz
Max Propagation Delay @ V, Max CL40ns @ 5V, 15pF
Trigger TypePositive Edge
Current - Output High, Low400µA, 8mA
Voltage - Supply4.75V ~ 5.25V
Current - Quiescent (Iq)8 mA
Input Capacitance-
Operating Temperature0°C ~ 70°C (TA)
Mounting TypeSurface Mount
Supplier Device Package16-SOIC
Package / Case16-SOIC (0.154", 3.90mm Width)
