SN74HCT74ADBR

In Stock: 3,905

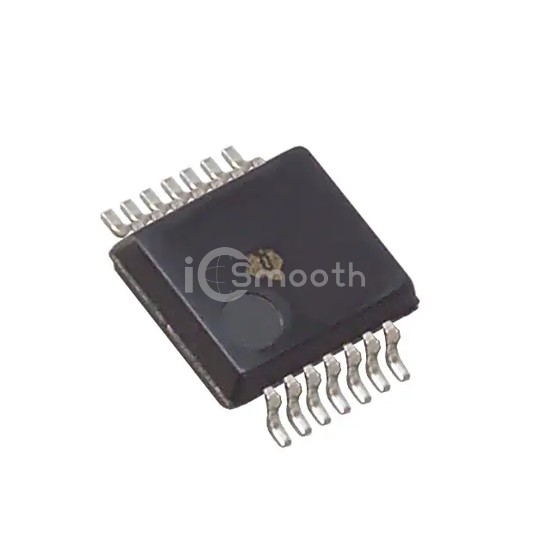

SN74HCT74ADBR - Texas Instruments - Logic - Flip Flops
REF: SN74HCT74ADBR Texas Instruments
SN74HCT74ADBR

Texas Instruments

DUAL POSITIVE-EDGE-TRIGGERED F/F

SN74HCT74ADBR is a Logic - Flip Flops manufactured by Texas Instruments. DUAL POSITIVE-EDGE-TRIGGERED F/F. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 4.5V ~ 5.5V, package / case 14-SSOP (0.209", 5.30mm Width).

Request a Quote

In Stock: 3,905

Specifications

17 parameters
Product StatusObsolete
FunctionSet(Preset) and Reset
TypeD-Type
Output TypeComplementary
Number of Elements2
Number of Bits per Element1
Clock Frequency46 MHz
Max Propagation Delay @ V, Max CL25ns @ 5.5V, 50pF
Trigger TypePositive Edge
Current - Output High, Low4mA, 4mA
Voltage - Supply4.5V ~ 5.5V
Current - Quiescent (Iq)4 µA
Input Capacitance3 pF
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Supplier Device Package14-SSOP
Package / Case14-SSOP (0.209", 5.30mm Width)
