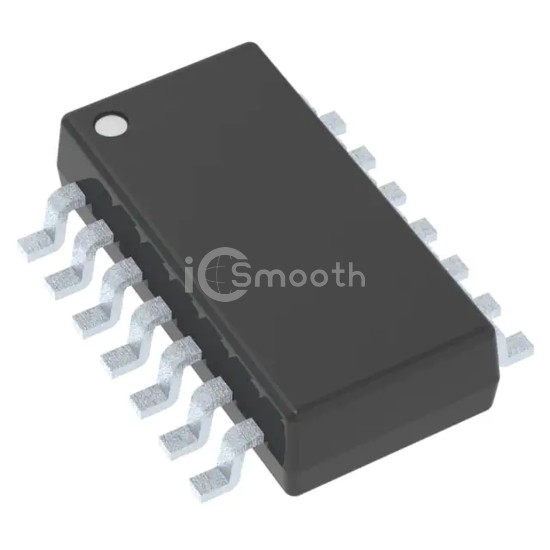

Name: SN74HCS74DYYR
Brand: Texas Instruments
SKU: SN74HCS74DYYR
Price: 0.37 USD
Availability: InStock

REF: SN74HCS74DYYR Texas Instruments

SN74HCS74DYYR

Texas Instruments

SCHMITT-TRIGGER INPUT DUAL D-TYP

SN74HCS74DYYR is a Logic - Flip Flops manufactured by Texas Instruments. SCHMITT-TRIGGER INPUT DUAL D-TYP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 2V ~ 6V, package / case SOT-23-14 Thin, SOT-23 Variant.

Datasheet Request a Quote

In Stock: 5,191

Tiered Pricing USD

1+ $0.3700 —

10+ $0.2550 -31%

25+ $0.2268 -39%

100+ $0.1957 -47%

250+ $0.1809 -51%

500+ $0.1720 -54%

1,000+ $0.1647 -56% BEST

Specifications

17 parameters

Product Status	Active
Function	Set(Preset) and Reset
Type	D-Type
Output Type	Complementary
Number of Elements	2
Number of Bits per Element	1
Clock Frequency	105 MHz
Max Propagation Delay @ V, Max CL	15ns @ 6V, 50pF
Trigger Type	Positive Edge

Current - Output High, Low	7.8mA, 7.8mA
Voltage - Supply	2V ~ 6V
Current - Quiescent (Iq)	2 µA
Input Capacitance	5 pF
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	14-SOT-23-THIN
Package / Case	SOT-23-14 Thin, SOT-23 Variant
