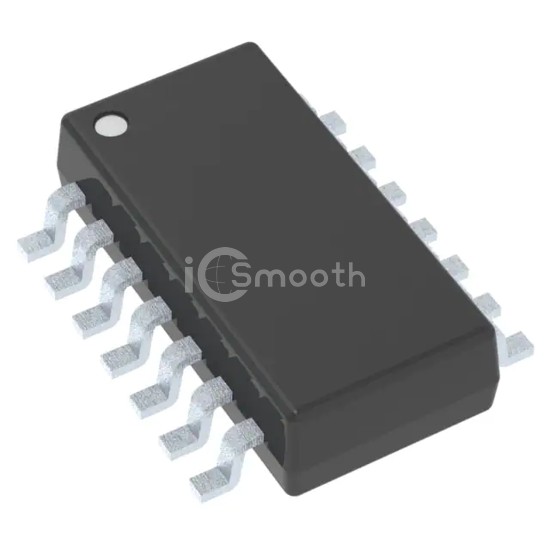

Name: SN74HCS125DYYR
Brand: Texas Instruments
SKU: SN74HCS125DYYR
Price: 0.27 USD
Availability: InStock

REF: SN74HCS125DYYR Texas Instruments

SN74HCS125DYYR

Texas Instruments

SCHMITT-TRIGGER INPUTS QUADRUPLE

SN74HCS125DYYR is a Logic - Buffers, Drivers, Receivers, Transceivers manufactured by Texas Instruments. SCHMITT-TRIGGER INPUTS QUADRUPLE. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 2V ~ 6V, package / case SOT-23-14 Thin, SOT-23 Variant.

Datasheet Request a Quote

In Stock: 7,025

Tiered Pricing USD

1+ $0.2700 —

10+ $0.1830 -32%

25+ $0.1620 -40%

100+ $0.1388 -49%

250+ $0.1278 -53%

500+ $0.1212 -55%

1,000+ $0.1157 -57% BEST

Specifications

12 parameters

Product Status	Active
Logic Type	Buffer, Non-Inverting
Number of Elements	4
Number of Bits per Element	1
Input Type	Schmitt Trigger
Output Type	3-State

Current - Output High, Low	7.8mA, 7.8mA
Voltage - Supply	2V ~ 6V
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	SOT-23-14 Thin, SOT-23 Variant
Supplier Device Package	14-SOT-23-THIN
