Name: SN74HC109DRG4
Brand: Texas Instruments
SKU: SN74HC109DRG4
Price: 0.18 USD
Availability: InStock

REF: SN74HC109DRG4 Texas Instruments

SN74HC109DRG4

Texas Instruments

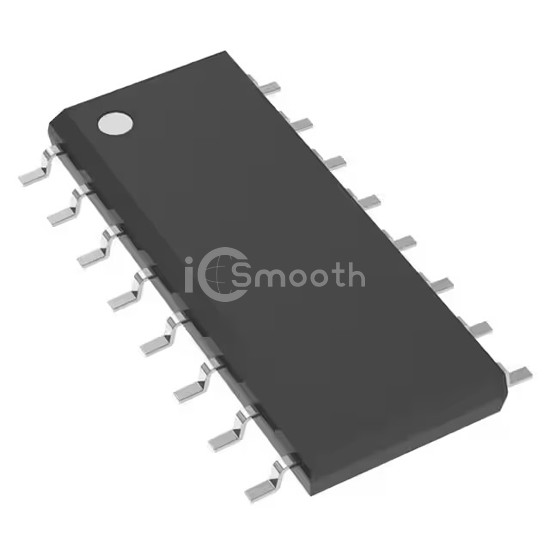

IC FF JK TYPE DUAL 1BIT 16SOIC

SN74HC109DRG4 is a Logic - Flip Flops manufactured by Texas Instruments. IC FF JK TYPE DUAL 1BIT 16SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 2V ~ 6V, package / case 16-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 8,901

Tiered Pricing USD

2,500+ $0.1753 —

5,000+ $0.1702 -3%

7,500+ $0.1676 -4%

12,500+ $0.1648 -6%

17,500+ $0.1631 -7%

25,000+ $0.1615 -8%

62,500+ $0.1581 -10% BEST

Specifications

17 parameters

Product Status	Obsolete
Function	Set(Preset) and Reset
Type	JK Type
Output Type	Complementary
Number of Elements	2
Number of Bits per Element	1
Clock Frequency	60 MHz
Max Propagation Delay @ V, Max CL	30ns @ 6V, 50pF
Trigger Type	Positive Edge

Current - Output High, Low	5.2mA, 5.2mA
Voltage - Supply	2V ~ 6V
Current - Quiescent (Iq)	4 µA
Input Capacitance	3 pF
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	16-SOIC
Package / Case	16-SOIC (0.154", 3.90mm Width)
