Name: SN74HC109D
Brand: Texas Instruments
SKU: SN74HC109D
Price: 0.99 USD
Availability: InStock

REF: SN74HC109D Texas Instruments

SN74HC109D

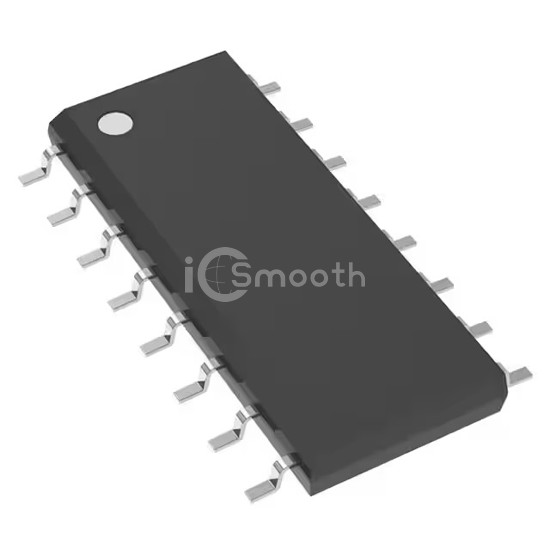

IC FF JK TYPE DUAL 1BIT 16SOIC

SN74HC109D is a Logic - Flip Flops manufactured by Texas Instruments. IC FF JK TYPE DUAL 1BIT 16SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 2V ~ 6V, package / case 16-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 4,869

Tiered Pricing USD

1+ $0.9900 —

10+ $0.7100 -28%

40+ $0.6113 -38%

120+ $0.5563 -44%

280+ $0.5240 -47%

520+ $0.5048 -49%

1,000+ $0.4878 -51%

2,520+ $0.4686 -53% BEST

Specifications

17 parameters

Product Status	Active
Function	Set(Preset) and Reset
Type	JK Type
Output Type	Complementary
Number of Elements	2
Number of Bits per Element	1
Clock Frequency	60 MHz
Max Propagation Delay @ V, Max CL	30ns @ 6V, 50pF
Trigger Type	Positive Edge

Current - Output High, Low	5.2mA, 5.2mA
Voltage - Supply	2V ~ 6V
Current - Quiescent (Iq)	4 µA
Input Capacitance	3 pF
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	16-SOIC
Package / Case	16-SOIC (0.154", 3.90mm Width)
