SN74AS109ANSR

In Stock: 3,509
SN74AS109ANSR - Texas Instruments - Logic - Flip Flops
REF: SN74AS109ANSR Texas Instruments
SN74AS109ANSR

Texas Instruments

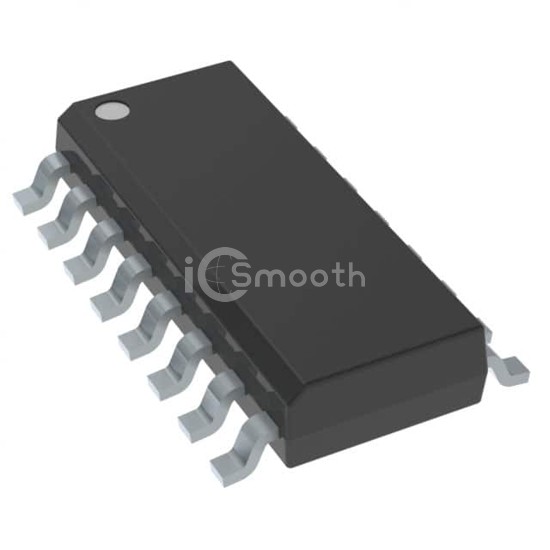

IC FF JK TYPE DUAL 1BIT 16SO

SN74AS109ANSR is a Logic - Flip Flops manufactured by Texas Instruments. IC FF JK TYPE DUAL 1BIT 16SO. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C (TA), voltage - supply 4.5V ~ 5.5V, package / case 16-SOIC (0.209", 5.30mm Width).

Datasheet Request a Quote

In Stock: 3,509

Tiered Pricing USD
2,000+ $2.3760 —
4,000+ $2.3301 -2% BEST

Specifications

17 parameters
Product StatusActive
FunctionSet(Preset) and Reset
TypeJK Type
Output TypeComplementary
Number of Elements2
Number of Bits per Element1
Clock Frequency105 MHz
Max Propagation Delay @ V, Max CL9ns @ 5V, 50pF
Trigger TypePositive Edge
Current - Output High, Low2mA, 20mA
Voltage - Supply4.5V ~ 5.5V
Current - Quiescent (Iq)17 mA
Input Capacitance-
Operating Temperature0°C ~ 70°C (TA)
Mounting TypeSurface Mount
Supplier Device Package16-SO
Package / Case16-SOIC (0.209", 5.30mm Width)
