SN74ABT843NSRG4

In Stock: 3,970

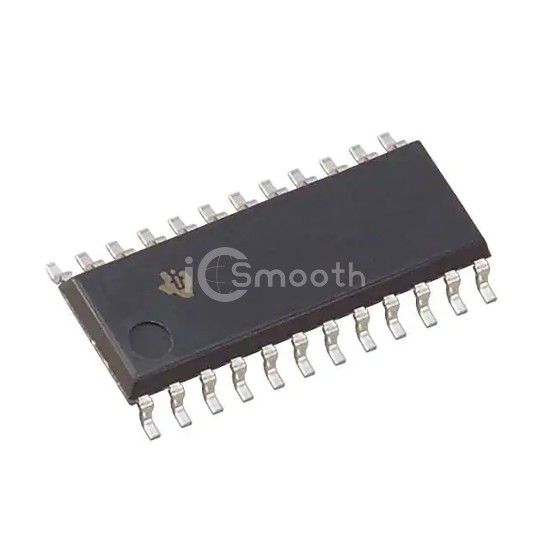

SN74ABT843NSRG4 - Texas Instruments - Logic - Latches
REF: SN74ABT843NSRG4 Texas Instruments
SN74ABT843NSRG4

Texas Instruments

IC D-TYPE LATCH SGL 3-ST 24SO

SN74ABT843NSRG4 is a Logic - Latches manufactured by Texas Instruments. IC D-TYPE LATCH SGL 3-ST 24SO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 4.5V ~ 5.5V, package / case 24-SOIC (0.209", 5.30mm Width).

Datasheet Request a Quote

In Stock: 3,970

Specifications

12 parameters
Product StatusObsolete
Logic TypeD-Type Transparent Latch
Circuit9:9
Output TypeTri-State
Voltage - Supply4.5V ~ 5.5V
Independent Circuits1
Delay Time - Propagation4.4ns
Current - Output High, Low32mA, 64mA
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / Case24-SOIC (0.209", 5.30mm Width)
Supplier Device Package24-SO
