Name: SN74ABT823NSR
Brand: Texas Instruments
SKU: SN74ABT823NSR
Price: 0.98 USD
Availability: InStock

REF: SN74ABT823NSR Texas Instruments

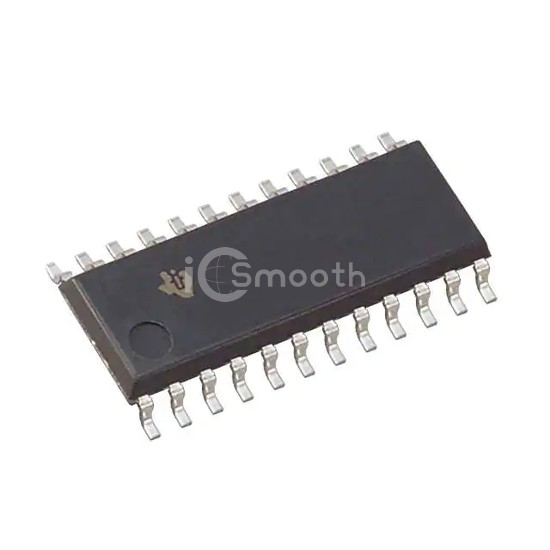

SN74ABT823NSR

Texas Instruments

IC FF D-TYPE SNGL 9BIT 24SO

SN74ABT823NSR is a Logic - Flip Flops manufactured by Texas Instruments. IC FF D-TYPE SNGL 9BIT 24SO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 4.5V ~ 5.5V, package / case 24-SOIC (0.209", 5.30mm Width).

Datasheet Request a Quote

In Stock: 8,452

Tiered Pricing USD

2,000+ $0.9797 —

4,000+ $0.9574 -2%

6,000+ $0.9463 -3%

10,000+ $0.9339 -5% BEST

Specifications

17 parameters

Product Status	Obsolete
Function	Master Reset
Type	D-Type
Output Type	Tri-State, Non-Inverted
Number of Elements	1
Number of Bits per Element	9
Clock Frequency	200 MHz
Max Propagation Delay @ V, Max CL	6.1ns @ 5V, 50pF
Trigger Type	Positive Edge

Current - Output High, Low	32mA, 64mA
Voltage - Supply	4.5V ~ 5.5V
Current - Quiescent (Iq)	250 µA
Input Capacitance	4 pF
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	24-SO
Package / Case	24-SOIC (0.209", 5.30mm Width)
