PDRV5023AJQLPG

In Stock: 4,686

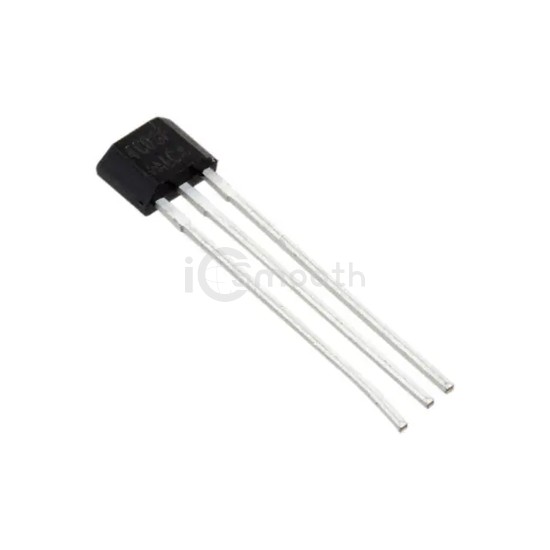

PDRV5023AJQLPG - Texas Instruments - Magnetic Sensors - Switches (Solid State)
REF: PDRV5023AJQLPG Texas Instruments
PDRV5023AJQLPG

Texas Instruments

MAGNETIC SWITCH UNIPOLAR TO92-3

PDRV5023AJQLPG is a Magnetic Sensors - Switches (Solid State) manufactured by Texas Instruments. MAGNETIC SWITCH UNIPOLAR TO92-3. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C (TA), voltage - supply 2.5V ~ 38V, package / case TO-226-3, TO-92-3 Short Body.

Datasheet Request a Quote

In Stock: 4,686

Specifications

15 parameters
Product StatusObsolete
FunctionUnipolar Switch
TechnologyHall Effect
PolarizationSouth Pole
Sensing Range12mT Trip, 1mT Release
Test Condition-40°C ~ 125°C
Voltage - Supply2.5V ~ 38V
Current - Supply (Max)2.7mA (Typ)
Current - Output (Max)30mA
Output TypeOpen Drain
FeaturesTemperature Compensated
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeThrough Hole
Supplier Device PackageTO-92-3
Package / CaseTO-226-3, TO-92-3 Short Body
