PCA9535RTWR

In Stock: 4,685

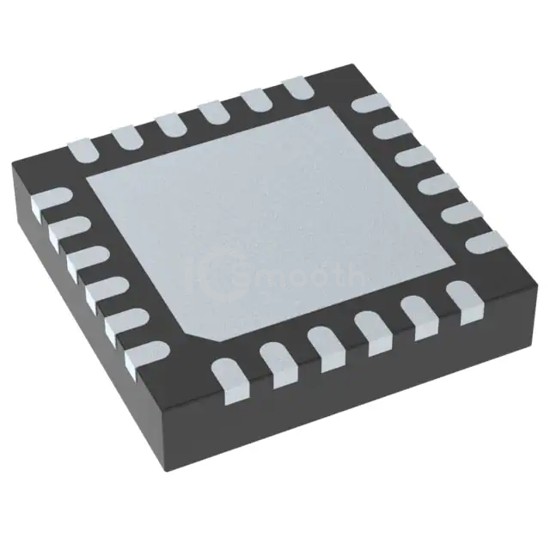

PCA9535RTWR - Texas Instruments - Interface - I/O Expanders
REF: PCA9535RTWR Texas Instruments
PCA9535RTWR

Texas Instruments

IC I/O EXPANDER I2C 16B 24WQFN

PCA9535RTWR is a Interface - I/O Expanders manufactured by Texas Instruments. IC I/O EXPANDER I2C 16B 24WQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 2.3V ~ 5.5V, package / case 24-WFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 4,685

Specifications

13 parameters
Product StatusNot For New Designs
Number of I/O16
InterfaceI²C, SMBus
Interrupt OutputYes
FeaturesPOR
Output TypePush-Pull
Current - Output Source/Sink10mA, 25mA
Clock Frequency400 kHz
Voltage - Supply2.3V ~ 5.5V
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / Case24-WFQFN Exposed Pad
Supplier Device Package24-WQFN (4x4)
