PADS54J60IRMPT

In Stock: 1,098

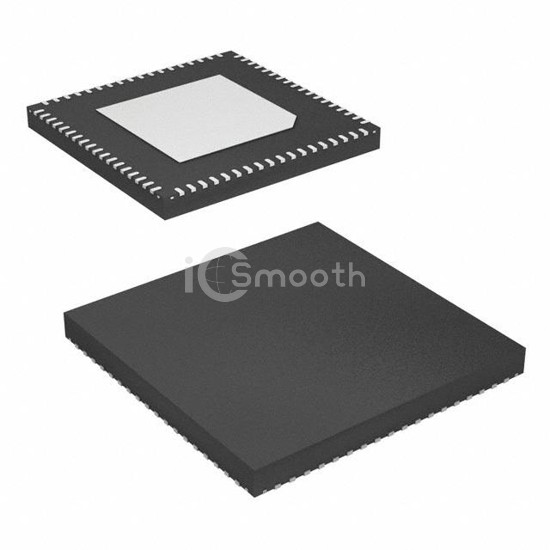

PADS54J60IRMPT - Texas Instruments - Data Acquisition - Analog to Digital Converters (ADC)
REF: PADS54J60IRMPT Texas Instruments
PADS54J60IRMPT

Texas Instruments

IC ADC 16BIT PIPELINED 72VQFN

PADS54J60IRMPT is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Texas Instruments. IC ADC 16BIT PIPELINED 72VQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 1.7V ~ 2V, package / case 72-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 1,098

Specifications

18 parameters
Product StatusObsolete
Number of Bits16
Sampling Rate (Per Second)1G
Number of Inputs2
Input TypeDifferential
Data InterfaceJESD204B
ConfigurationS/H-ADC
Ratio - S/H:ADC1:1
Number of A/D Converters2
ArchitecturePipelined
Reference TypeExternal
Voltage - Supply, Analog1.8V ~ 2V, 2.85V ~ 3.6V
Voltage - Supply, Digital1.7V ~ 2V
FeaturesInterleavable, Simultaneous Sampling
Operating Temperature-40°C ~ 85°C
Package / Case72-VFQFN Exposed Pad
Supplier Device Package72-VQFN (10x10)
Mounting TypeSurface Mount
