Name: OPA4187IRUMT
Brand: Texas Instruments
SKU: OPA4187IRUMT
Price: 6.23 USD
Availability: InStock

REF: OPA4187IRUMT Texas Instruments

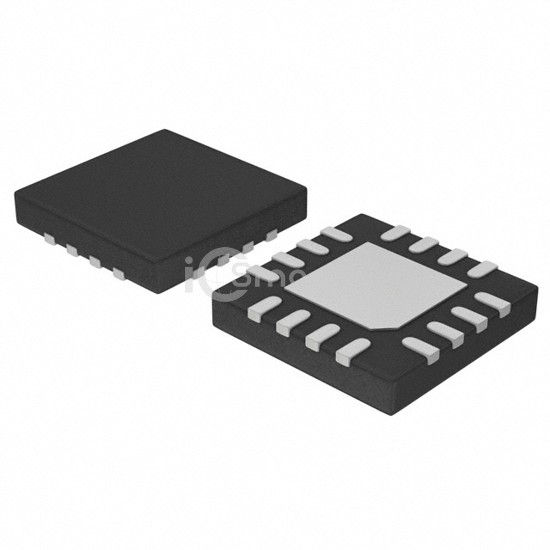

OPA4187IRUMT

IC OPAMP ZER-DRIFT 4CIRC 16WQFN

OPA4187IRUMT is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by Texas Instruments. IC OPAMP ZER-DRIFT 4CIRC 16WQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 16-WQFN Exposed Pad, current - supply 100µA (x4 Channels).

Request a Quote

In Stock: 8,732

Specifications

17 parameters

Product Status	Active
Amplifier Type	Zero-Drift
Number of Circuits	4
Output Type	Rail-to-Rail
Slew Rate	0.2V/µs
Gain Bandwidth Product	550 kHz
-3db Bandwidth	-
Current - Input Bias	100 pA
Voltage - Input Offset	1 µV

Current - Supply	100µA (x4 Channels)
Current - Output / Channel	30 mA
Voltage - Supply Span (Min)	4.5 V
Voltage - Supply Span (Max)	36 V
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	16-WQFN Exposed Pad
Supplier Device Package	16-WQFN (4x4)
