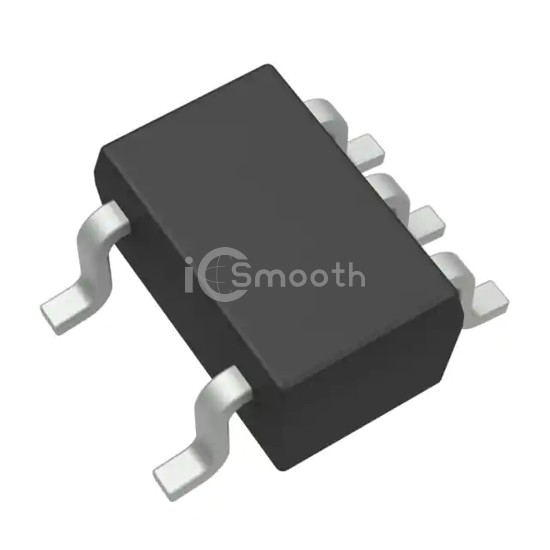

Name: OPA333AIDCKTG4
Brand: Texas Instruments
SKU: OPA333AIDCKTG4
Availability: InStock

REF: OPA333AIDCKTG4 Texas Instruments

OPA333AIDCKTG4

IC OPAMP ZERO-DRIFT 1CIRC SC70-5

OPA333AIDCKTG4 is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by Texas Instruments. IC OPAMP ZERO-DRIFT 1CIRC SC70-5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 5-TSSOP, SC-70-5, SOT-353, current - supply 17µA.

Datasheet Request a Quote

In Stock: 7,902

Specifications

17 parameters

Product Status	Discontinued at Digi-Key
Amplifier Type	Zero-Drift
Number of Circuits	1
Output Type	Rail-to-Rail
Slew Rate	0.16V/µs
Gain Bandwidth Product	350 kHz
-3db Bandwidth	-
Current - Input Bias	70 pA
Voltage - Input Offset	2 µV

Current - Supply	17µA
Current - Output / Channel	5 mA
Voltage - Supply Span (Min)	1.8 V
Voltage - Supply Span (Max)	5.5 V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	5-TSSOP, SC-70-5, SOT-353
Supplier Device Package	SC-70-5
