Name: OPA330AIYFFT
Brand: Texas Instruments
SKU: OPA330AIYFFT
Price: 2.69 USD
Availability: InStock

REF: OPA330AIYFFT Texas Instruments

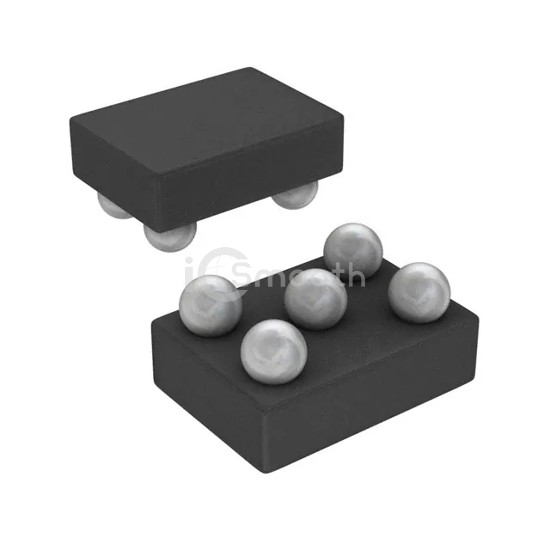

OPA330AIYFFT

IC OPAMP ZERO-DRIFT 1CIRC 5DSBGA

OPA330AIYFFT is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by Texas Instruments. IC OPAMP ZERO-DRIFT 1CIRC 5DSBGA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 5-UFBGA, DSBGA, current - supply 21µA.

Datasheet Request a Quote

In Stock: 9,878

Specifications

17 parameters

Product Status	Active
Amplifier Type	Zero-Drift
Number of Circuits	1
Output Type	Rail-to-Rail
Slew Rate	0.16V/µs
Gain Bandwidth Product	350 kHz
-3db Bandwidth	-
Current - Input Bias	200 pA
Voltage - Input Offset	8 µV

Current - Supply	21µA
Current - Output / Channel	5 mA
Voltage - Supply Span (Min)	1.8 V
Voltage - Supply Span (Max)	5.5 V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	5-UFBGA, DSBGA
Supplier Device Package	5-DSBGA (1.12x0.82)
