Name: OPA2333SJD
Brand: Texas Instruments
SKU: OPA2333SJD
Price: 121.10 USD
Availability: InStock

REF: OPA2333SJD Texas Instruments

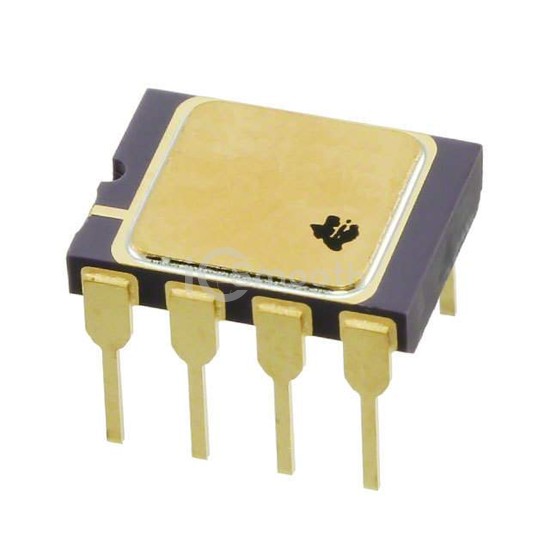

OPA2333SJD

IC OPAMP ZERO-DRIFT 2 CIRC 8CDIP

OPA2333SJD is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by Texas Instruments. IC OPAMP ZERO-DRIFT 2 CIRC 8CDIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 210°C, package / case 8-CDIP (0.300", 7.62mm) Window, current - supply 17µA (x2 Channels).

Datasheet Request a Quote

In Stock: 8,137

Specifications

17 parameters

Product Status	Active
Amplifier Type	CMOS, Zero-Drift
Number of Circuits	2
Output Type	Rail-to-Rail
Slew Rate	0.16V/µs
Gain Bandwidth Product	350 kHz
-3db Bandwidth	-
Current - Input Bias	70 pA
Voltage - Input Offset	2 µV

Current - Supply	17µA (x2 Channels)
Current - Output / Channel	5 mA
Voltage - Supply Span (Min)	1.8 V
Voltage - Supply Span (Max)	5.5 V
Operating Temperature	-55°C ~ 210°C
Mounting Type	Through Hole
Package / Case	8-CDIP (0.300", 7.62mm) Window
Supplier Device Package	8-CDIP SB
