Name: OPA2322AIDRGT
Brand: Texas Instruments
SKU: OPA2322AIDRGT
Price: 3.09 USD
Availability: InStock

REF: OPA2322AIDRGT Texas Instruments

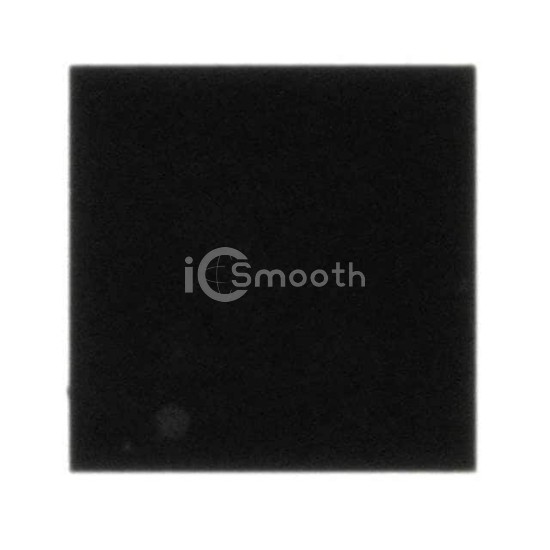

OPA2322AIDRGT

Texas Instruments

IC CMOS 2 CIRCUIT 8SON

OPA2322AIDRGT is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by Texas Instruments. IC CMOS 2 CIRCUIT 8SON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 8-WFDFN Exposed Pad, current - supply 1.6mA (x2 Channels).

Datasheet Request a Quote

In Stock: 4,695

Specifications

17 parameters

Product Status	Active
Amplifier Type	CMOS
Number of Circuits	2
Output Type	Rail-to-Rail
Slew Rate	10V/µs
Gain Bandwidth Product	20 MHz
-3db Bandwidth	-
Current - Input Bias	0.2 pA
Voltage - Input Offset	500 µV

Current - Supply	1.6mA (x2 Channels)
Current - Output / Channel	65 mA
Voltage - Supply Span (Min)	1.8 V
Voltage - Supply Span (Max)	5.5 V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	8-WFDFN Exposed Pad
Supplier Device Package	8-SON (3x3)
