Name: LPV542DNXT
Brand: Texas Instruments
SKU: LPV542DNXT
Price: 2.19 USD
Availability: InStock

REF: LPV542DNXT Texas Instruments

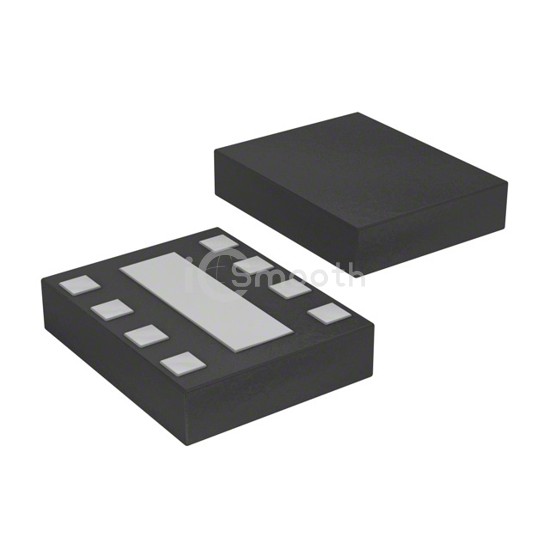

LPV542DNXT

IC CMOS 2 CIRCUIT 8X1SON

LPV542DNXT is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by Texas Instruments. IC CMOS 2 CIRCUIT 8X1SON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 8-XFDFN Exposed Pad, current - supply 480nA (x2 Channels).

Datasheet Request a Quote

In Stock: 41,750

Specifications

17 parameters

Product Status	Active
Amplifier Type	CMOS
Number of Circuits	2
Output Type	Rail-to-Rail
Slew Rate	0.0037V/µs
Gain Bandwidth Product	8 kHz
-3db Bandwidth	-
Current - Input Bias	0.1 pA
Voltage - Input Offset	1 mV

Current - Supply	480nA (x2 Channels)
Current - Output / Channel	36 mA
Voltage - Supply Span (Min)	1.6 V
Voltage - Supply Span (Max)	5.5 V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	8-XFDFN Exposed Pad
Supplier Device Package	8-X1SON (3x3)
