Name: LPV358IDDUR
Brand: Texas Instruments
SKU: LPV358IDDUR
Price: 0.44 USD
Availability: InStock

REF: LPV358IDDUR Texas Instruments

LPV358IDDUR

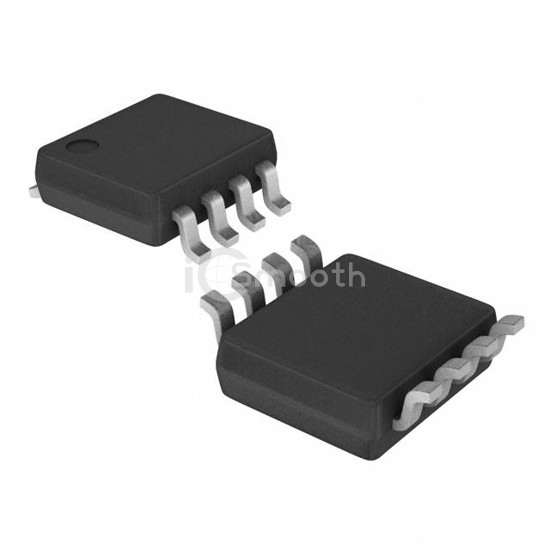

IC OPAMP GP 2 CIRCUIT 8VSSOP

LPV358IDDUR is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by Texas Instruments. IC OPAMP GP 2 CIRCUIT 8VSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 8-VFSOP (0.091", 2.30mm Width), current - supply 15µA (x2 Channels).

Datasheet Request a Quote

In Stock: 26,500

Specifications

17 parameters

Product Status	Obsolete
Amplifier Type	General Purpose
Number of Circuits	2
Output Type	Rail-to-Rail
Slew Rate	0.1V/µs
Gain Bandwidth Product	237 kHz
-3db Bandwidth	-
Current - Input Bias	2 nA
Voltage - Input Offset	1.5 mV

Current - Supply	15µA (x2 Channels)
Current - Output / Channel	72 mA
Voltage - Supply Span (Min)	2.7 V
Voltage - Supply Span (Max)	5 V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	8-VFSOP (0.091", 2.30mm Width)
Supplier Device Package	8-VSSOP
