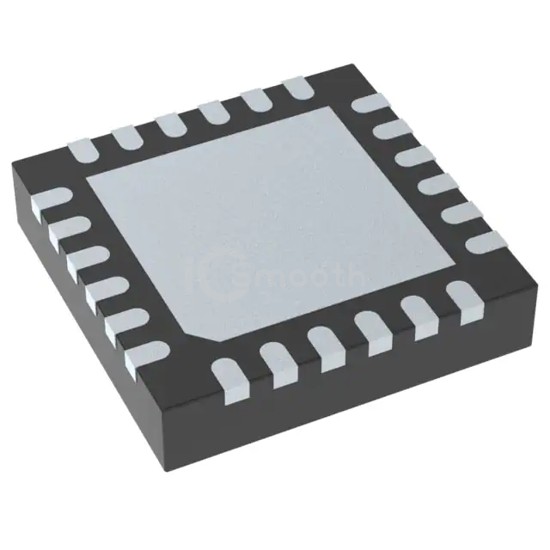

Name: LP8556SQX-E00/NOPB
Brand: Texas Instruments
SKU: LP8556SQX-E00/NOPB
Price: 0.48 USD
Availability: InStock

REF: LP8556SQX-E00/NOPB Texas Instruments

LP8556SQX-E00/NOPB

Texas Instruments

IC LED DRV RGLTR PWM 25MA 24WQFN

LP8556SQX-E00/NOPB is a PMIC - LED Drivers manufactured by Texas Instruments. IC LED DRV RGLTR PWM 25MA 24WQFN. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 85°C (TA), voltage - output 16V ~ 34.5V, package / case 24-WFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 13,269

Tiered Pricing USD

4,500+ $0.4778 —

9,000+ $0.4677 -2%

13,500+ $0.4627 -3% BEST

Specifications

16 parameters

Product Status	Active
Type	DC DC Regulator
Topology	Step-Up (Boost)
Internal Switch(s)	Yes
Number of Outputs	5
Voltage - Supply (Min)	2.7V
Voltage - Supply (Max)	20V
Voltage - Output	16V ~ 34.5V

Current - Output / Channel	25mA
Frequency	312kHz, 625kHz, 1250kHz
Dimming	PWM
Applications	Backlight
Operating Temperature	-30°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	24-WFQFN Exposed Pad
Supplier Device Package	24-WQFN (4x4)
