Name: LP8340ILDX-2.5
Brand: Texas Instruments
SKU: LP8340ILDX-2.5
Availability: InStock

REF: LP8340ILDX-2.5 Texas Instruments

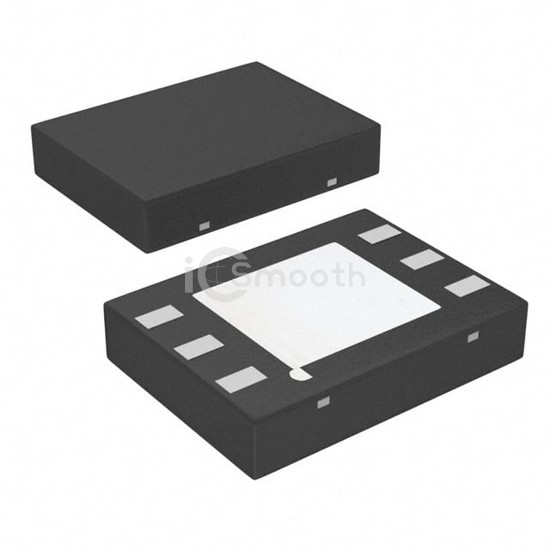

LP8340ILDX-2.5

IC REG LINEAR 2.5V 1A 6WSON

LP8340ILDX-2.5 is a PMIC - Voltage Regulators - Linear manufactured by Texas Instruments. IC REG LINEAR 2.5V 1A 6WSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 6-WDFN Exposed Pad, current - supply (max) 170 µA.

Datasheet Request a Quote

In Stock: 5,501

Specifications

18 parameters

Product Status	Obsolete
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	10V
Voltage - Output (Min/Fixed)	2.5V
Voltage - Output (Max)	-
Voltage Dropout (Max)	1.5V @ 1A
Current - Output	1A

Current - Quiescent (Iq)	100 µA
Current - Supply (Max)	170 µA
PSRR	55dB (120Hz)
Control Features	-
Protection Features	Over Current, Over Temperature
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	6-WDFN Exposed Pad
Supplier Device Package	6-WSON (2.92x3.29)
