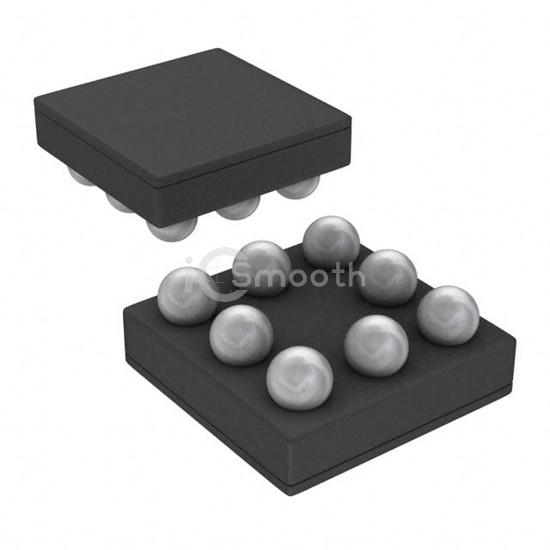

Name: LP3986TLX-2525/NOPB
Brand: Texas Instruments
SKU: LP3986TLX-2525/NOPB
Price: 0.38 USD
Availability: InStock

REF: LP3986TLX-2525/NOPB Texas Instruments

LP3986TLX-2525/NOPB

Texas Instruments

IC REG LINEAR 2.5V 150MA 8DSBGA

LP3986TLX-2525/NOPB is a PMIC - Voltage Regulators - Linear manufactured by Texas Instruments. IC REG LINEAR 2.5V 150MA 8DSBGA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 8-WFBGA, DSBGA, current - supply (max) 320 µA.

Datasheet Request a Quote

In Stock: 1,566

Tiered Pricing USD

3,000+ $0.3818 —

6,000+ $0.3725 -2%

9,000+ $0.3679 -4%

15,000+ $0.3627 -5%

21,000+ $0.3597 -6% BEST

Specifications

18 parameters

Product Status	Obsolete
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	2
Voltage - Input (Max)	6V
Voltage - Output (Min/Fixed)	2.5V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.1V @ 150mA
Current - Output	150mA

Current - Quiescent (Iq)	130 µA
Current - Supply (Max)	320 µA
PSRR	60dB ~ 50dB (1kHz ~ 10kHz)
Control Features	Enable
Protection Features	Over Current, Over Temperature, Short Circuit
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	8-WFBGA, DSBGA
Supplier Device Package	8-DSBGA (1.56x1.56)
