Name: LP3986BL-2528
Brand: Texas Instruments
SKU: LP3986BL-2528
Price: 0.72 USD
Availability: InStock

REF: LP3986BL-2528 Texas Instruments

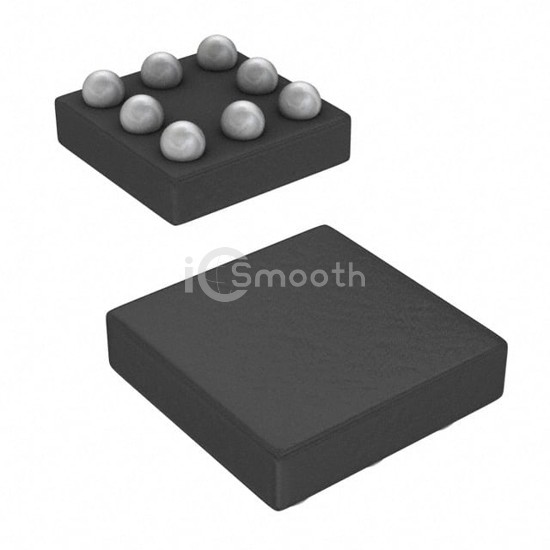

LP3986BL-2528

Texas Instruments

IC REG LIN 2.5V/2.8V 150MA 8USMD

LP3986BL-2528 is a PMIC - Voltage Regulators - Linear manufactured by Texas Instruments. IC REG LIN 2.5V/2.8V 150MA 8USMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 8-TFBGA, current - supply (max) 320 µA.

Datasheet Request a Quote

In Stock: 8,545

Tiered Pricing USD

250+ $0.7225 —

500+ $0.6939 -4%

750+ $0.6796 -6%

1,250+ $0.6638 -8%

1,750+ $0.6545 -9%

2,500+ $0.6456 -11%

6,250+ $0.6265 -13%

12,500+ $0.6149 -15% BEST

Specifications

18 parameters

Product Status	Obsolete
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	2
Voltage - Input (Max)	6V
Voltage - Output (Min/Fixed)	2.5V, 2.8V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.1V @ 150mA
Current - Output	150mA

Current - Quiescent (Iq)	130 µA
Current - Supply (Max)	320 µA
PSRR	60dB ~ 50dB (1kHz ~ 10kHz)
Control Features	Enable
Protection Features	Over Current, Over Temperature, Short Circuit
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	8-TFBGA
Supplier Device Package	8-µSMD (1.57x1.57)
