Name: LP38798SDX-ADJ/NOPB
Brand: Texas Instruments
SKU: LP38798SDX-ADJ/NOPB
Price: 3.66 USD
Availability: InStock

REF: LP38798SDX-ADJ/NOPB Texas Instruments

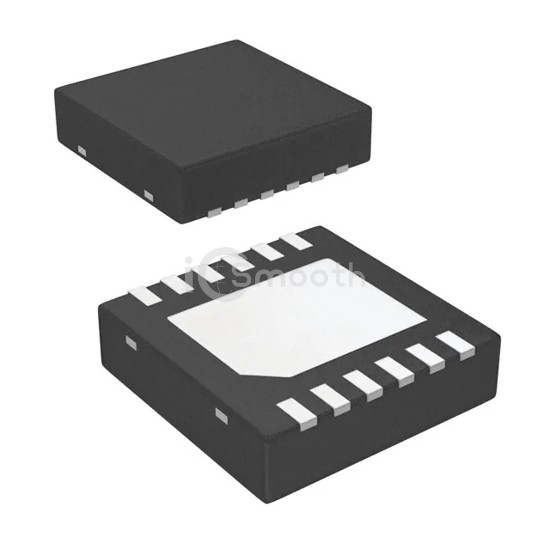

LP38798SDX-ADJ/NOPB

Texas Instruments

IC REG LIN POS ADJ 800MA 12WSON

LP38798SDX-ADJ/NOPB is a PMIC - Voltage Regulators - Linear manufactured by Texas Instruments. IC REG LIN POS ADJ 800MA 12WSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 12-WFDFN Exposed Pad, current - supply (max) 2.2 mA.

Datasheet Request a Quote

In Stock: 7,860

Tiered Pricing USD

1+ $3.6600 —

10+ $2.7600 -25%

25+ $2.5340 -31%

100+ $2.2862 -38%

250+ $2.1679 -41%

500+ $2.0966 -43%

1,000+ $2.0380 -44% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	20V
Voltage - Output (Min/Fixed)	1.2V
Voltage - Output (Max)	19.8V
Voltage Dropout (Max)	1.1V @ 800mA
Current - Output	800mA

Current - Quiescent (Iq)	1.4 mA
Current - Supply (Max)	2.2 mA
PSRR	60dB (1kHz)
Control Features	Enable
Protection Features	Over Current, Over Temperature, Short Circuit
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	12-WFDFN Exposed Pad
Supplier Device Package	12-WSON (4x4)
