LP38798SDE-ADJ/NOPB

In Stock: 6,609

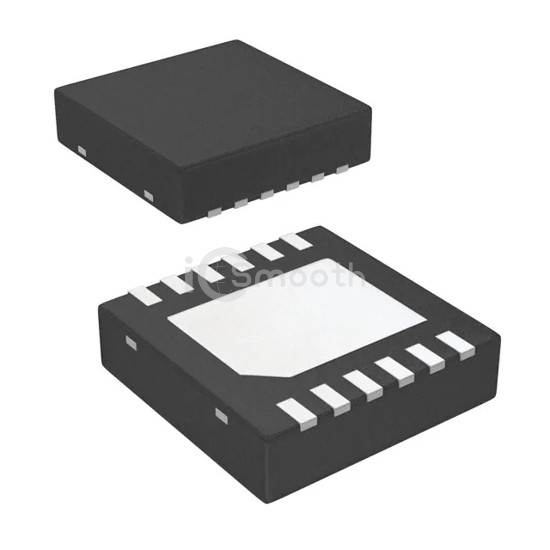

LP38798SDE-ADJ/NOPB - Texas Instruments - PMIC - Voltage Regulators - Linear
REF: LP38798SDE-ADJ/NOPB Texas Instruments
LP38798SDE-ADJ/NOPB

Texas Instruments

IC REG LIN POS ADJ 800MA 12WSON

LP38798SDE-ADJ/NOPB is a PMIC - Voltage Regulators - Linear manufactured by Texas Instruments. IC REG LIN POS ADJ 800MA 12WSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 12-WFDFN Exposed Pad, current - supply (max) 2.2 mA.

Datasheet Request a Quote

In Stock: 6,609

Tiered Pricing USD
1+ $4.3100 —
10+ $3.2680 -24%
25+ $3.0072 -30%
100+ $2.7202 -37% BEST

Specifications

18 parameters
Product StatusActive
Output ConfigurationPositive
Output TypeAdjustable
Number of Regulators1
Voltage - Input (Max)20V
Voltage - Output (Min/Fixed)1.2V
Voltage - Output (Max)19.8V
Voltage Dropout (Max)1.1V @ 800mA
Current - Output800mA
Current - Quiescent (Iq)1.4 mA
Current - Supply (Max)2.2 mA
PSRR60dB (1kHz)
Control FeaturesEnable
Protection FeaturesOver Current, Over Temperature, Short Circuit
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case12-WFDFN Exposed Pad
Supplier Device Package12-WSON (4x4)
