LP3856ET-ADJ

In Stock: 6,637

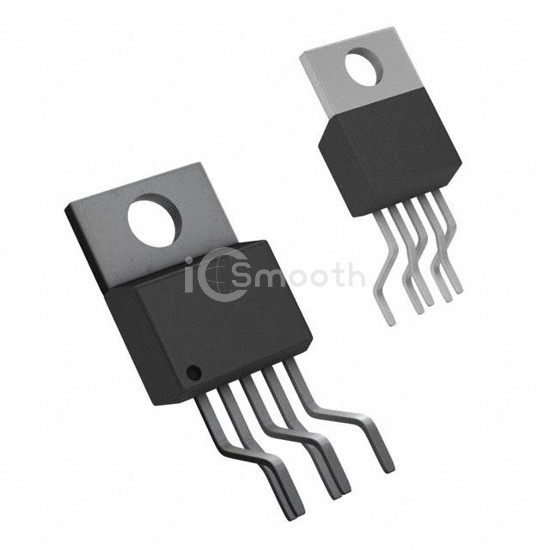

LP3856ET-ADJ - Texas Instruments - PMIC - Voltage Regulators - Linear
REF: LP3856ET-ADJ Texas Instruments
LP3856ET-ADJ

Texas Instruments

IC REG LINEAR POS ADJ 3A TO220-5

LP3856ET-ADJ is a PMIC - Voltage Regulators - Linear manufactured by Texas Instruments. IC REG LINEAR POS ADJ 3A TO220-5. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case TO-220-5 Formed Leads, current - supply (max) 10 mA.

Datasheet Request a Quote

In Stock: 6,637

Specifications

18 parameters
Product StatusObsolete
Output ConfigurationPositive
Output TypeAdjustable
Number of Regulators1
Voltage - Input (Max)7V
Voltage - Output (Min/Fixed)1.23V
Voltage - Output (Max)6.5V
Voltage Dropout (Max)0.6V @ 3A
Current - Output3A
Current - Quiescent (Iq)4 mA
Current - Supply (Max)10 mA
PSRR73dB ~ 57dB (120Hz)
Control FeaturesEnable
Protection FeaturesOver Current, Over Temperature, Short Circuit
Operating Temperature-40°C ~ 125°C
Mounting TypeThrough Hole
Package / CaseTO-220-5 Formed Leads
Supplier Device PackageTO-220-5
