LP3855EMPX-ADJ

In Stock: 4,028

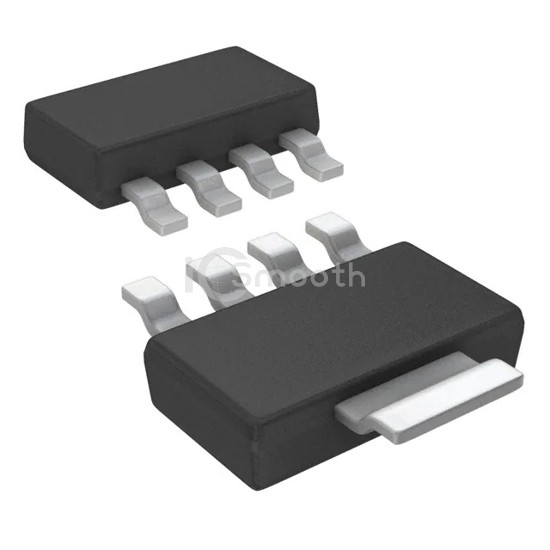

LP3855EMPX-ADJ - Texas Instruments - PMIC - Voltage Regulators - Linear
REF: LP3855EMPX-ADJ Texas Instruments
LP3855EMPX-ADJ

Texas Instruments

IC REG LIN POS ADJ 1.5A SOT223-5

LP3855EMPX-ADJ is a PMIC - Voltage Regulators - Linear manufactured by Texas Instruments. IC REG LIN POS ADJ 1.5A SOT223-5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case TO-261-5, TO-261AB, current - supply (max) 10 mA.

Datasheet Request a Quote

In Stock: 4,028

Specifications

18 parameters
Product StatusObsolete
Output ConfigurationPositive
Output TypeAdjustable
Number of Regulators1
Voltage - Input (Max)7V
Voltage - Output (Min/Fixed)1.23V
Voltage - Output (Max)6.6V
Voltage Dropout (Max)0.435V @ 1.5A
Current - Output1.5A
Current - Quiescent (Iq)3 mA
Current - Supply (Max)10 mA
PSRR73dB ~ 57dB (120Hz)
Control FeaturesEnable
Protection FeaturesOver Current, Over Temperature, Short Circuit
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / CaseTO-261-5, TO-261AB
Supplier Device PackageSOT-223-5
