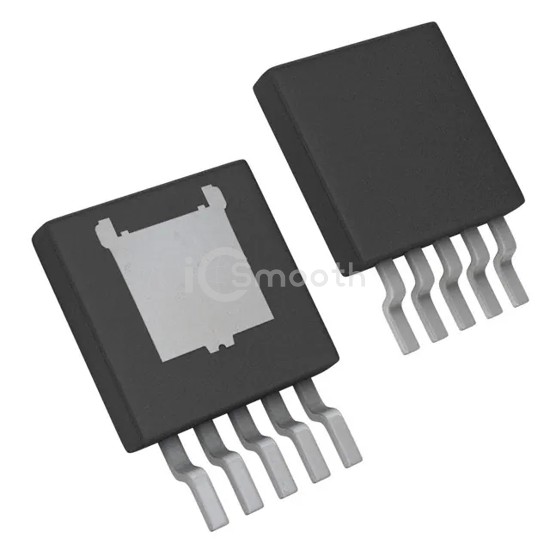

Name: LP38503ATJ-ADJ/NOPB
Brand: Texas Instruments
SKU: LP38503ATJ-ADJ/NOPB
Price: 2.44 USD
Availability: InStock

REF: LP38503ATJ-ADJ/NOPB Texas Instruments

LP38503ATJ-ADJ/NOPB

Texas Instruments

IC REG LIN POS ADJ 3A TO263 THIN

LP38503ATJ-ADJ/NOPB is a PMIC - Voltage Regulators - Linear manufactured by Texas Instruments. IC REG LIN POS ADJ 3A TO263 THIN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case TO-263-5 Thin, current - supply (max) 4 mA.

Datasheet Request a Quote

In Stock: 7,268

Tiered Pricing USD

1+ $2.4400 —

10+ $1.8150 -26%

25+ $1.6580 -32%

100+ $1.4852 -39%

250+ $1.4028 -43%

500+ $1.3532 -45% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	0.6V
Voltage - Output (Max)	5V
Voltage Dropout (Max)	0.67V @ 3A
Current - Output	3A

Current - Quiescent (Iq)	15 µA
Current - Supply (Max)	4 mA
PSRR	58dB ~ 56dB (120Hz ~ 1kHz)
Control Features	-
Protection Features	Over Current, Over Temperature, Short Circuit
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	TO-263-5 Thin
Supplier Device Package	TO-263-5 Thin
