Name: LP2967IBPX-1833
Brand: Texas Instruments
SKU: LP2967IBPX-1833
Availability: InStock

REF: LP2967IBPX-1833 Texas Instruments

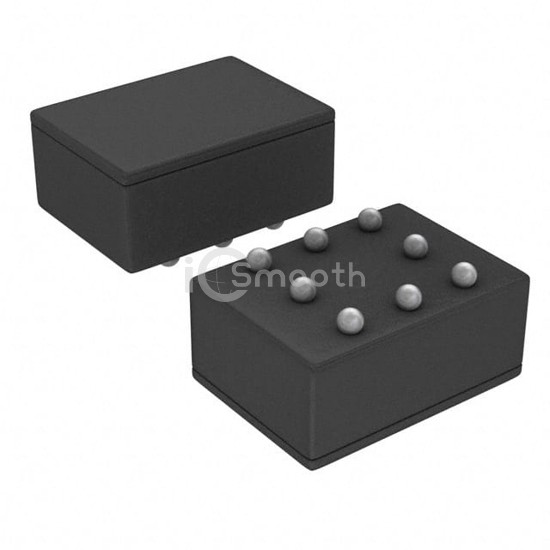

LP2967IBPX-1833

IC REG LIN 1.8V/3.3V 150MA 8USMD

LP2967IBPX-1833 is a PMIC - Voltage Regulators - Linear manufactured by Texas Instruments. IC REG LIN 1.8V/3.3V 150MA 8USMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 8-VFBGA, current - supply (max) 5 mA.

Datasheet Request a Quote

In Stock: 6,840

Specifications

18 parameters

Product Status	Obsolete
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	2
Voltage - Input (Max)	16V
Voltage - Output (Min/Fixed)	1.8V, 3.3V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.42V @ 150mA
Current - Output	150mA

Current - Quiescent (Iq)	300 µA
Current - Supply (Max)	5 mA
PSRR	52dB ~ 70dB (120Hz ~ 1MHz)
Control Features	Enable
Protection Features	Over Current, Over Temperature, Short Circuit
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	8-VFBGA
Supplier Device Package	8-uSMD
