Name: LMV712LD
Brand: Texas Instruments
SKU: LMV712LD
Availability: InStock

REF: LMV712LD Texas Instruments

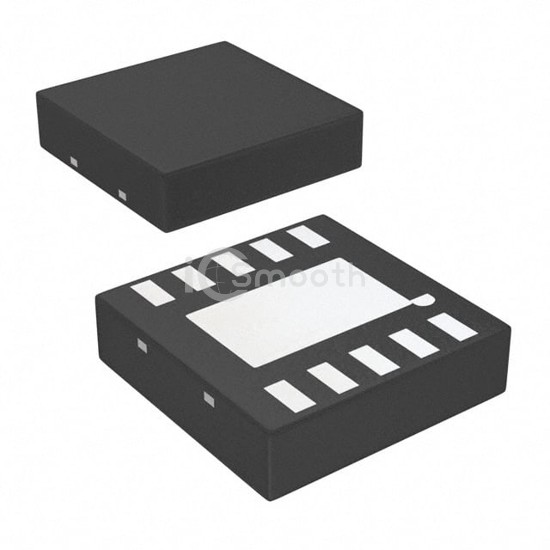

LMV712LD

IC OPAMP GP 2 CIRCUIT 10WSON

LMV712LD is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by Texas Instruments. IC OPAMP GP 2 CIRCUIT 10WSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 10-WFDFN Exposed Pad, current - supply 1.22mA (x2 Channels).

Datasheet Request a Quote

In Stock: 5,642

Specifications

17 parameters

Product Status	Obsolete
Amplifier Type	General Purpose
Number of Circuits	2
Output Type	Rail-to-Rail
Slew Rate	5V/µs
Gain Bandwidth Product	5 MHz
-3db Bandwidth	-
Current - Input Bias	5.5 pA
Voltage - Input Offset	400 µV

Current - Supply	1.22mA (x2 Channels)
Current - Output / Channel	50 mA
Voltage - Supply Span (Min)	2.7 V
Voltage - Supply Span (Max)	5.5 V
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	10-WFDFN Exposed Pad
Supplier Device Package	10-WSON (3x3)
