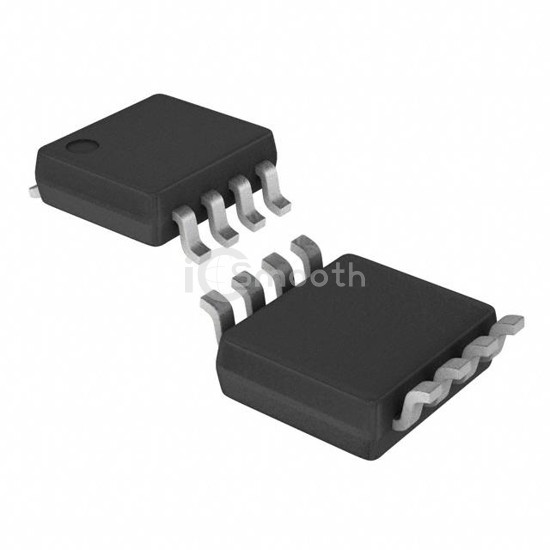

Name: LMV358QDDUR
Brand: Texas Instruments
SKU: LMV358QDDUR
Price: 1.34 USD
Availability: InStock

REF: LMV358QDDUR Texas Instruments

LMV358QDDUR

IC OPAMP GP 2 CIRCUIT 8VSSOP

LMV358QDDUR is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by Texas Instruments. IC OPAMP GP 2 CIRCUIT 8VSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 8-VFSOP (0.091", 2.30mm Width), current - supply 210µA (x2 Channels).

Datasheet Request a Quote

In Stock: 7,089

Specifications

17 parameters

Product Status	Active
Amplifier Type	General Purpose
Number of Circuits	2
Output Type	Rail-to-Rail
Slew Rate	1V/µs
Gain Bandwidth Product	1 MHz
-3db Bandwidth	-
Current - Input Bias	15 nA
Voltage - Input Offset	1.7 mV

Current - Supply	210µA (x2 Channels)
Current - Output / Channel	40 mA
Voltage - Supply Span (Min)	2.7 V
Voltage - Supply Span (Max)	5.5 V
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	8-VFSOP (0.091", 2.30mm Width)
Supplier Device Package	8-VSSOP
