LMH7322SQX/NOPB

In Stock: 6,441

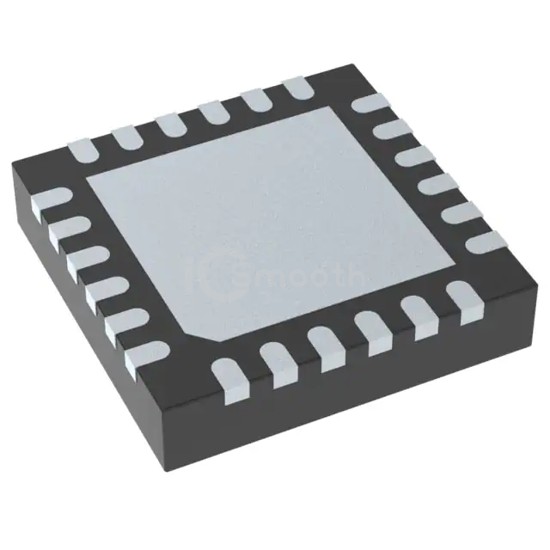

LMH7322SQX/NOPB - Texas Instruments - Linear - Comparators
REF: LMH7322SQX/NOPB Texas Instruments
LMH7322SQX/NOPB

Texas Instruments

IC COMP DUAL 700PS RSPECL 24WQFN

LMH7322SQX/NOPB is a Linear - Comparators manufactured by Texas Instruments. IC COMP DUAL 700PS RSPECL 24WQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 24-WFQFN Exposed Pad, output type Differential, LVDS, RSPECL.

Datasheet Request a Quote

In Stock: 6,441

Specifications

16 parameters
Product StatusObsolete
TypeGeneral Purpose
Number of Elements2
Output TypeDifferential, LVDS, RSPECL
Voltage - Supply, Single/Dual (±)2.7V ~ 12V, ±1.35V ~ 6V
Voltage - Input Offset (Max)8mV @ 5V
Current - Input Bias (Max)5µA @ 5V
Current - Output (Typ)25mA
Current - Quiescent (Max)10mA
CMRR, PSRR (Typ)80dB CMRR, 80dB PSRR
Propagation Delay (Max)0.783ns
Hysteresis75mV
Operating Temperature-40°C ~ 125°C
Package / Case24-WFQFN Exposed Pad
Mounting TypeSurface Mount
Supplier Device Package24-WQFN (4x4)
