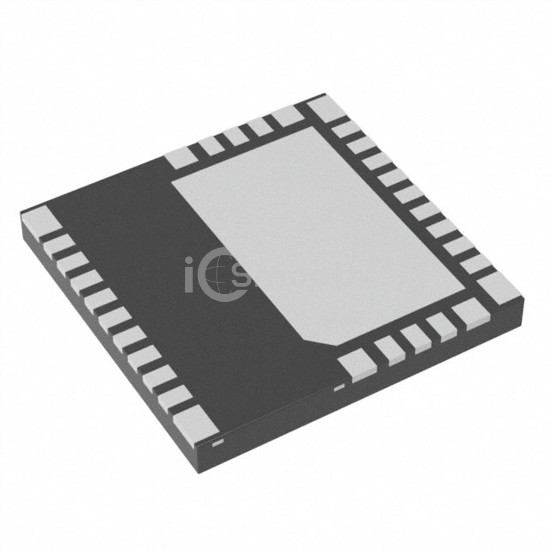

Name: LMG3411R070RWHR
Brand: Texas Instruments
SKU: LMG3411R070RWHR
Price: 7.76 USD
Availability: InStock

REF: LMG3411R070RWHR Texas Instruments

LMG3411R070RWHR

Texas Instruments

IC GAN FET DRIVER

LMG3411R070RWHR is a PMIC - Power Distribution Switches, Load Drivers manufactured by Texas Instruments. IC GAN FET DRIVER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 9.5V ~ 18V, package / case 32-VQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 3,220

Specifications

18 parameters

Product Status	Active
Switch Type	Load Switch
Number of Outputs	1
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	P-Channel
Interface	Logic, PWM
Voltage - Load	480V (Max)
Voltage - Supply (Vcc/Vdd)	9.5V ~ 18V

Current - Output (Max)	12A
Rds On (Typ)	70mOhm
Input Type	Non-Inverting
Features	Bootstrap Circuit, 5V Regulated Output
Fault Protection	Over Current, Over Temperature, UVLO
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	32-VQFN (8x8)
Package / Case	32-VQFN Exposed Pad
