LMG3410R150RWHR

In Stock: 1,671

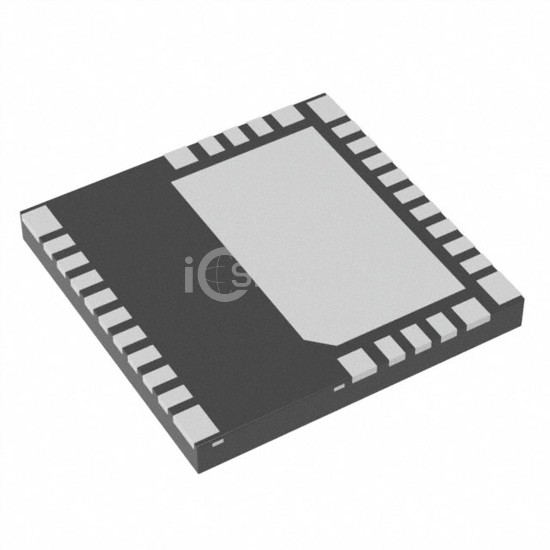

LMG3410R150RWHR - Texas Instruments - PMIC - Power Distribution Switches, Load Drivers
REF: LMG3410R150RWHR Texas Instruments
LMG3410R150RWHR

Texas Instruments

SMART 150MOHM GAN FET WITH DRIVE

LMG3410R150RWHR is a PMIC - Power Distribution Switches, Load Drivers manufactured by Texas Instruments. SMART 150MOHM GAN FET WITH DRIVE. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 9.5V ~ 18V, package / case 32-VQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 1,671

Tiered Pricing USD
1+ $9.1500 —
10+ $7.1190 -22%
25+ $6.6112 -28%
100+ $6.0526 -34%
250+ $5.7864 -37%
500+ $5.6259 -39%
1,000+ $5.4938 -40% BEST

Specifications

18 parameters
Product StatusActive
Switch TypeLoad Switch
Number of Outputs1
Ratio - Input:Output1:1
Output ConfigurationHigh Side
Output TypeN-Channel
InterfaceLogic, PWM
Voltage - Load480V (Max)
Voltage - Supply (Vcc/Vdd)9.5V ~ 18V
Current - Output (Max)6A
Rds On (Typ)150mOhm
Input TypeNon-Inverting
FeaturesBootstrap Circuit, 5V Regulated Output
Fault ProtectionOver Current, Over Temperature, UVLO
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package32-VQFN (8x8)
Package / Case32-VQFN Exposed Pad
