LMG1025QDEERQ1

In Stock: 4,625

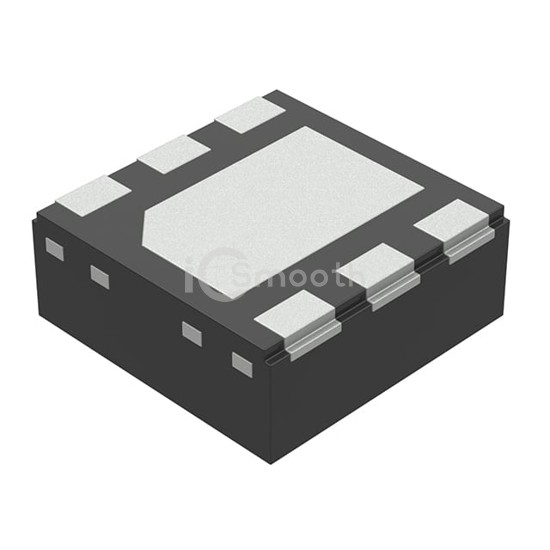

LMG1025QDEERQ1 - Texas Instruments - PMIC - Gate Drivers
REF: LMG1025QDEERQ1 Texas Instruments
LMG1025QDEERQ1

Texas Instruments

LOW-SIDE GAN DRIVER AUTO 5V 5/7A

LMG1025QDEERQ1 is a PMIC - Gate Drivers manufactured by Texas Instruments. LOW-SIDE GAN DRIVER AUTO 5V 5/7A. Key specifications: mounting type Surface Mount, Wettable Flank, operating temperature -40°C ~ 125°C (TJ), voltage - supply 4.75V ~ 5.25V, package / case 6-WDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 4,625

Specifications

15 parameters
Product StatusActive
Driven ConfigurationLow-Side
Channel TypeSingle
Number of Drivers1
Gate TypeN-Channel, P-Channel MOSFET
Voltage - Supply4.75V ~ 5.25V
Logic Voltage - VIL, VIH1.8V, 1.7V
Current - Peak Output (Source, Sink)7A, 5A
Input TypeInverting, Non-Inverting
High Side Voltage - Max (Bootstrap)-
Rise / Fall Time (Typ)-
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount, Wettable Flank
Package / Case6-WDFN Exposed Pad
Supplier Device Package6-WSON (2x2)
