Name: LM9073T/NOPB
Brand: Texas Instruments
SKU: LM9073T/NOPB
Price: 3.86 USD
Availability: InStock

REF: LM9073T/NOPB Texas Instruments

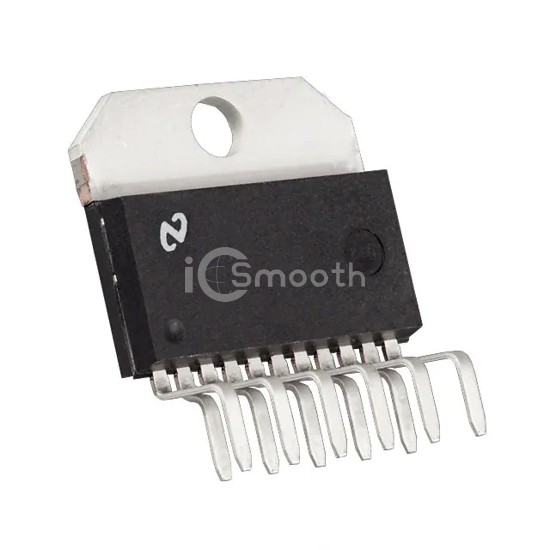

LM9073T/NOPB

IC REG LIN 5V 700MA/100MA TO220

LM9073T/NOPB is a PMIC - Voltage Regulators - Linear manufactured by Texas Instruments. IC REG LIN 5V 700MA/100MA TO220. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case TO-220-11 (Formed Leads), current - supply (max) 10 mA.

Datasheet Request a Quote

In Stock: 9,775

Specifications

18 parameters

Product Status	Obsolete
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	2
Voltage - Input (Max)	27V
Voltage - Output (Min/Fixed)	5V
Voltage - Output (Max)	-
Voltage Dropout (Max)	1V @ 700mA
Current - Output	700mA, 100mA

Current - Quiescent (Iq)	100 µA
Current - Supply (Max)	10 mA
PSRR	40dB (20kHz)
Control Features	Enable, Watchdog (RSTO)
Protection Features	Over Temperature, Over Voltage, Short Circuit
Operating Temperature	-40°C ~ 125°C
Mounting Type	Through Hole
Package / Case	TO-220-11 (Formed Leads)
Supplier Device Package	TO-220-11
