Name: LM9072SX
Brand: Texas Instruments
SKU: LM9072SX
Price: 1.45 USD
Availability: InStock

REF: LM9072SX Texas Instruments

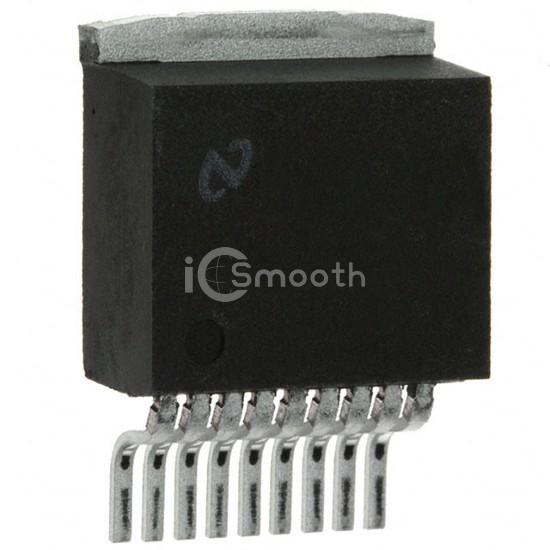

LM9072SX

IC REG LIN 5V 350MA/80MA TO263-9

LM9072SX is a PMIC - Voltage Regulators - Linear manufactured by Texas Instruments. IC REG LIN 5V 350MA/80MA TO263-9. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case TO-263-10 (9 Leads + Tab), current - supply (max) 10 mA.

Datasheet Request a Quote

In Stock: 1,089

Tiered Pricing USD

500+ $1.4525 —

1,000+ $1.4092 -3%

1,500+ $1.3875 -4%

2,500+ $1.3634 -6%

3,500+ $1.3494 -7%

5,000+ $1.3359 -8% BEST

Specifications

18 parameters

Product Status	Obsolete
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	2
Voltage - Input (Max)	27V
Voltage - Output (Min/Fixed)	5V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.8V @ 350mA
Current - Output	350mA, 80mA

Current - Quiescent (Iq)	40 µA
Current - Supply (Max)	10 mA
PSRR	40dB (20kHz)
Control Features	Enable, Tracking
Protection Features	Over Temperature, Reverse Polarity
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	TO-263-10 (9 Leads + Tab)
Supplier Device Package	DDPAK/TO-263-9
