Name: LM9070S/NOPB
Brand: Texas Instruments
SKU: LM9070S/NOPB
Availability: InStock

REF: LM9070S/NOPB Texas Instruments

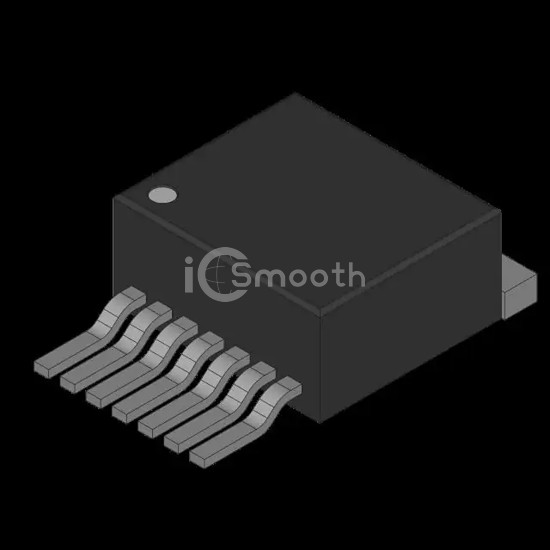

LM9070S/NOPB

IC REG LINEAR FIXED POS LDO REG

LM9070S/NOPB is a PMIC - Voltage Regulators - Linear manufactured by Texas Instruments. IC REG LINEAR FIXED POS LDO REG. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case TO-263-8, D²Pak (7 Leads + Tab), TO-263CA, current - supply (max) 50 mA.

Request a Quote

In Stock: 7,210

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	26V
Voltage - Output (Min/Fixed)	5V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.8V @ 250mA
Current - Output	250mA

Current - Quiescent (Iq)	10 mA
Current - Supply (Max)	50 mA
PSRR	60dB (120Hz)
Control Features	Enable
Protection Features	Over Temperature, Over Voltage, Reverse Polarity, Short Circuit
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
Supplier Device Package	DDPAK/TO-263-7
