Name: LM614CWMX
Brand: Texas Instruments
SKU: LM614CWMX
Availability: InStock

REF: LM614CWMX Texas Instruments

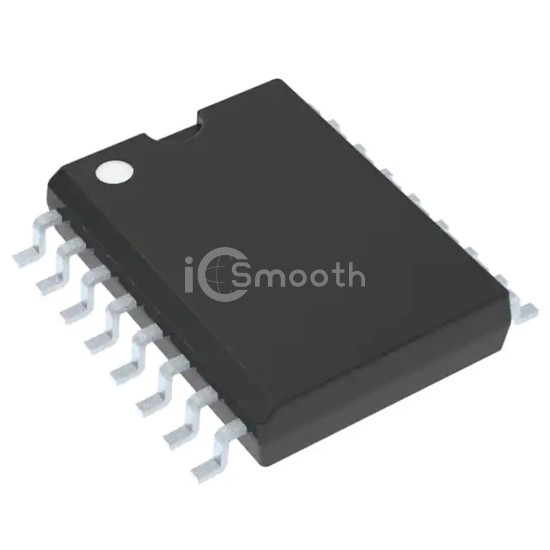

LM614CWMX

IC OPAMP GP 4 CIRCUIT 16SOIC

LM614CWMX is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by Texas Instruments. IC OPAMP GP 4 CIRCUIT 16SOIC. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, package / case 16-SOIC (0.295", 7.50mm Width), current - supply 450µA (x4 Channels).

Datasheet Request a Quote

In Stock: 4,738

Specifications

17 parameters

Product Status	Obsolete
Amplifier Type	General Purpose
Number of Circuits	4
Output Type	-
Slew Rate	0.7V/µs
Gain Bandwidth Product	800 kHz
-3db Bandwidth	-
Current - Input Bias	10 nA
Voltage - Input Offset	5 mV

Current - Supply	450µA (x4 Channels)
Current - Output / Channel	25 mA
Voltage - Supply Span (Min)	4 V
Voltage - Supply Span (Max)	36 V
Operating Temperature	0°C ~ 70°C
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.295", 7.50mm Width)
Supplier Device Package	16-SOIC
