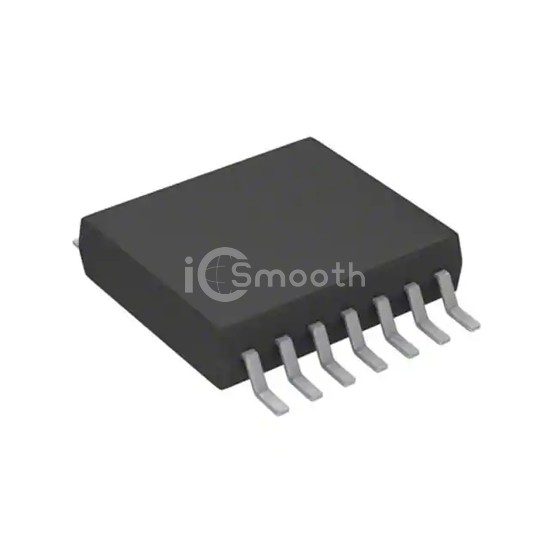

Name: LM5156HQPWPRQ1
Brand: Texas Instruments
SKU: LM5156HQPWPRQ1
Price: 2.94 USD
Availability: InStock

REF: LM5156HQPWPRQ1 Texas Instruments

LM5156HQPWPRQ1

Texas Instruments

2.2MHZ WIDE VIN AUTOMOTIVE NON-S

LM5156HQPWPRQ1 is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Texas Instruments. 2.2MHZ WIDE VIN AUTOMOTIVE NON-S. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply (vcc/vdd) 2.97V ~ 60V, package / case 14-TSSOP (0.173", 4.40mm Width) Exposed Pad.

Request a Quote

In Stock: 3,110

Tiered Pricing USD

1+ $2.9400 —

10+ $2.1980 -25%

25+ $2.0132 -32%

100+ $1.8092 -38%

250+ $1.7120 -42%

500+ $1.6534 -44%

1,000+ $1.6052 -45% BEST

Specifications

18 parameters

Product Status	Active
Output Type	Transistor Driver
Function	Step-Up, Step-Up/Step-Down
Output Configuration	Positive
Topology	Boost, Flyback, SEPIC
Number of Outputs	1
Output Phases	1
Voltage - Supply (Vcc/Vdd)	2.97V ~ 60V
Frequency - Switching	100kHz ~ 2.2MHz

Duty Cycle (Max)	93%
Synchronous Rectifier	No
Clock Sync	No
Serial Interfaces	-
Control Features	Current Limit, Enable, Frequency Control, Power Good, Soft Start
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	14-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package	14-HTSSOP
