Name: LM51561DSSR
Brand: Texas Instruments
SKU: LM51561DSSR
Price: 2.35 USD
Availability: InStock

REF: LM51561DSSR Texas Instruments

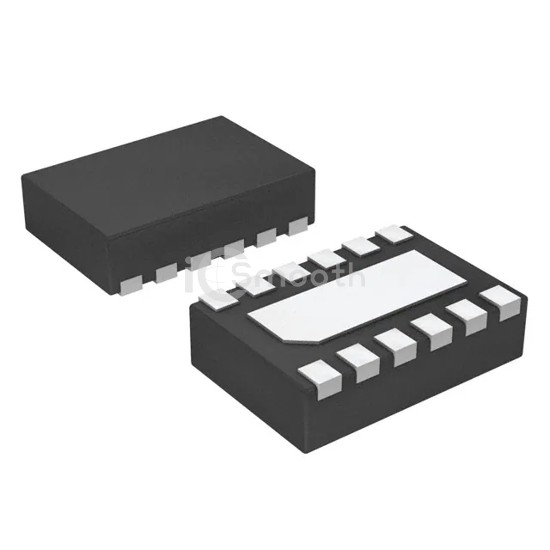

LM51561DSSR

2.2MHZ WIDE INPUT NONSYNCHRONOUS

LM51561DSSR is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Texas Instruments. 2.2MHZ WIDE INPUT NONSYNCHRONOUS. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 2.97V ~ 60V, package / case 12-WFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 8,827

Tiered Pricing USD

1+ $2.3500 —

10+ $1.7460 -26%

25+ $1.5940 -32%

100+ $1.4269 -39%

250+ $1.3472 -43%

500+ $1.2992 -45%

1,000+ $1.2597 -46% BEST

Specifications

18 parameters

Product Status	Active
Output Type	Transistor Driver
Function	Step-Up, Step-Up/Step-Down
Output Configuration	Positive
Topology	Boost, Flyback, SEPIC
Number of Outputs	1
Output Phases	1
Voltage - Supply (Vcc/Vdd)	2.97V ~ 60V
Frequency - Switching	100kHz ~ 2.2MHz

Duty Cycle (Max)	93%
Synchronous Rectifier	No
Clock Sync	No
Serial Interfaces	-
Control Features	Current Limit, Enable, Frequency Control, Power Good, Soft Start
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	12-WFDFN Exposed Pad
Supplier Device Package	12-WSON (3x2)
