LM5155QDSSTQ1

In Stock: 7,862

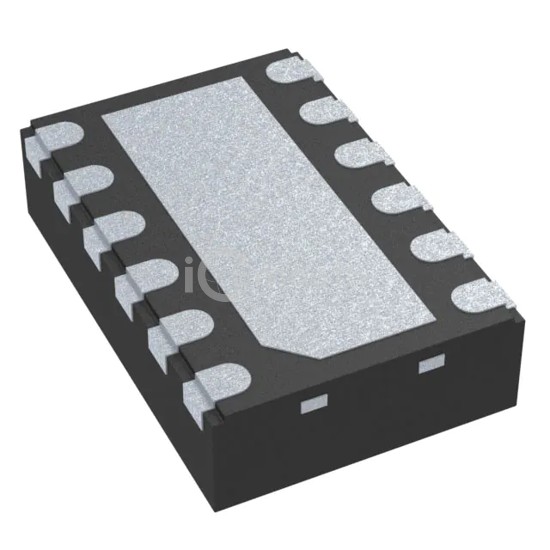

LM5155QDSSTQ1 - Texas Instruments - PMIC - Voltage Regulators - DC DC Switching Controllers
REF: LM5155QDSSTQ1 Texas Instruments
LM5155QDSSTQ1

Texas Instruments

POWER MANAGEMENT

LM5155QDSSTQ1 is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Texas Instruments. POWER MANAGEMENT. Key specifications: mounting type Surface Mount, Wettable Flank, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) 2.97V ~ 45V, package / case 12-WFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 7,862

Tiered Pricing USD
1+ $3.2900 —
10+ $2.4670 -25%
25+ $2.2620 -31%
100+ $2.0369 -38% BEST

Specifications

18 parameters
Product StatusActive
Output TypeTransistor Driver
FunctionStep-Up, Step-Up/Step-Down
Output ConfigurationPositive
TopologyBoost, Flyback, SEPIC
Number of Outputs1
Output Phases1
Voltage - Supply (Vcc/Vdd)2.97V ~ 45V
Frequency - Switching100kHz ~ 2.2MHz
Duty Cycle (Max)93%
Synchronous RectifierNo
Clock SyncYes
Serial Interfaces-
Control FeaturesSoft Start
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount, Wettable Flank
Package / Case12-WFDFN Exposed Pad
Supplier Device Package12-WSON (3x2)
