Name: LM5155DSSR
Brand: Texas Instruments
SKU: LM5155DSSR
Price: 2.15 USD
Availability: InStock

REF: LM5155DSSR Texas Instruments

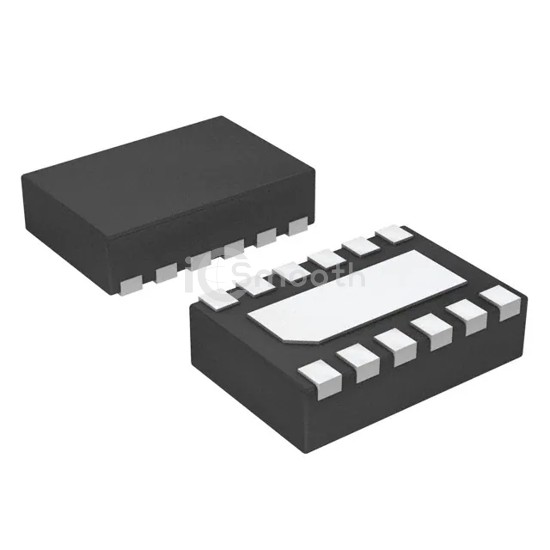

LM5155DSSR

POWER MANAGEMENT

LM5155DSSR is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Texas Instruments. POWER MANAGEMENT. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 2.97V ~ 45V, package / case 12-WFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 1,351

Tiered Pricing USD

1+ $2.1500 —

10+ $1.5900 -26%

25+ $1.4500 -33%

100+ $1.2959 -40%

250+ $1.2224 -43%

500+ $1.1782 -45%

1,000+ $1.1417 -47% BEST

Specifications

18 parameters

Product Status	Active
Output Type	Transistor Driver
Function	Step-Up, Step-Up/Step-Down
Output Configuration	Positive
Topology	Boost, Flyback, SEPIC
Number of Outputs	1
Output Phases	1
Voltage - Supply (Vcc/Vdd)	2.97V ~ 45V
Frequency - Switching	100kHz ~ 2.2MHz

Duty Cycle (Max)	93%
Synchronous Rectifier	No
Clock Sync	Yes
Serial Interfaces	-
Control Features	Soft Start
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	12-WFDFN Exposed Pad
Supplier Device Package	12-WSON (3x2)
