Name: LM5145RGYT
Brand: Texas Instruments
SKU: LM5145RGYT
Price: 4.77 USD
Availability: InStock

REF: LM5145RGYT Texas Instruments

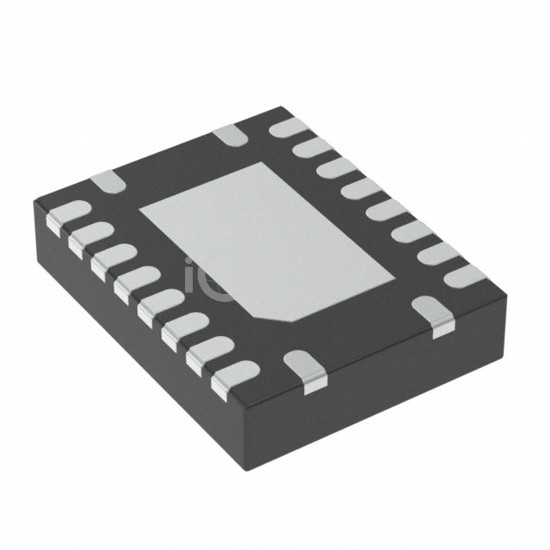

LM5145RGYT

IC REG CTRLR BUCK 20VQFN

LM5145RGYT is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Texas Instruments. IC REG CTRLR BUCK 20VQFN. Key specifications: mounting type Surface Mount, Wettable Flank, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 6V ~ 75V, package / case 20-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 6,362

Tiered Pricing USD

1+ $4.7700 —

10+ $3.6270 -24%

25+ $3.3416 -30%

100+ $3.0279 -37% BEST

Specifications

18 parameters

Product Status	Active
Output Type	Transistor Driver
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Number of Outputs	1
Output Phases	1
Voltage - Supply (Vcc/Vdd)	6V ~ 75V
Frequency - Switching	100kHz ~ 1MHz

Duty Cycle (Max)	100%
Synchronous Rectifier	Yes
Clock Sync	Yes
Serial Interfaces	-
Control Features	Enable, Frequency Control, Power Good, Soft Start
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount, Wettable Flank
Package / Case	20-VFQFN Exposed Pad
Supplier Device Package	20-VQFN (3.5x4.5)
