LM5113SD/NOPB

In Stock: 3,884

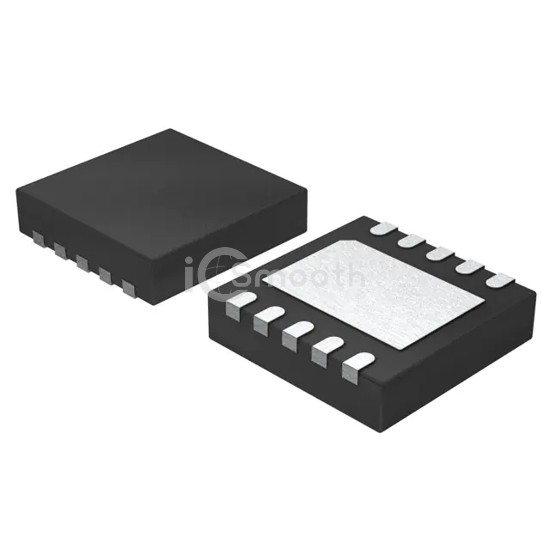

LM5113SD/NOPB - Texas Instruments - PMIC - Gate Drivers
REF: LM5113SD/NOPB Texas Instruments
LM5113SD/NOPB

Texas Instruments

IC GATE DRVR HALF-BRIDGE 10WSON

LM5113SD/NOPB is a PMIC - Gate Drivers manufactured by Texas Instruments. IC GATE DRVR HALF-BRIDGE 10WSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 4.5V ~ 5.5V, package / case 10-WDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 3,884

Tiered Pricing USD
1+ $6.6100 —
10+ $5.0870 -23%
25+ $4.7056 -29%
100+ $4.2864 -35%
250+ $4.0865 -38%
500+ $3.9660 -40% BEST

Specifications

15 parameters
Product StatusNot For New Designs
Driven ConfigurationHalf-Bridge
Channel TypeIndependent
Number of Drivers2
Gate TypeN-Channel MOSFET
Voltage - Supply4.5V ~ 5.5V
Logic Voltage - VIL, VIH1.76V, 1.89V
Current - Peak Output (Source, Sink)1.2A, 5A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)107 V
Rise / Fall Time (Typ)7ns, 1.5ns
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case10-WDFN Exposed Pad
Supplier Device Package10-WSON (4x4)
