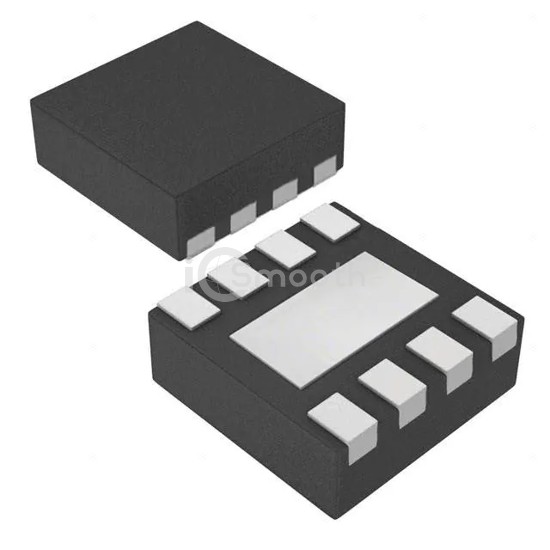

LM5109BSDX/NOPB - Texas Instruments - PMIC - Gate Drivers
REF: LM5109BSDX/NOPB Texas Instruments
LM5109BSDX/NOPB

Texas Instruments

IC GATE DRVR HALF-BRIDGE 8WSON

LM5109BSDX/NOPB is a PMIC - Gate Drivers manufactured by Texas Instruments. IC GATE DRVR HALF-BRIDGE 8WSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 8V ~ 14V, package / case 8-WDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 58

Tiered Pricing USD
1+ $0.8400 —
10+ $0.6020 -28%
25+ $0.5416 -36%
100+ $0.4755 -43%
250+ $0.4440 -47%
500+ $0.4250 -49%
1,000+ $0.4094 -51% BEST

Specifications

15 parameters
Product StatusActive
Driven ConfigurationHalf-Bridge
Channel TypeIndependent
Number of Drivers2
Gate TypeN-Channel MOSFET
Voltage - Supply8V ~ 14V
Logic Voltage - VIL, VIH0.8V, 2.2V
Current - Peak Output (Source, Sink)1A, 1A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)108 V
Rise / Fall Time (Typ)15ns, 15ns
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case8-WDFN Exposed Pad
Supplier Device Package8-WSON (4x4)
