LM5109BSD/NOPB

In Stock: 1,182
LM5109BSD/NOPB - Texas Instruments - PMIC - Gate Drivers
REF: LM5109BSD/NOPB Texas Instruments
LM5109BSD/NOPB

Texas Instruments

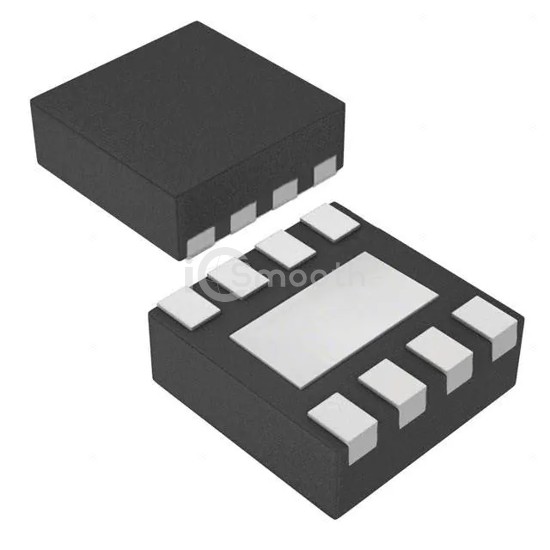

IC GATE DRVR HALF-BRIDGE 8WSON

LM5109BSD/NOPB is a PMIC - Gate Drivers manufactured by Texas Instruments. IC GATE DRVR HALF-BRIDGE 8WSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 8V ~ 14V, package / case 8-WDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 1,182

Tiered Pricing USD
1+ $1.3700 —
10+ $0.9960 -27%
25+ $0.9032 -34%
100+ $0.8005 -42%
250+ $0.7515 -45%
500+ $0.7220 -47% BEST

Specifications

15 parameters
Product StatusActive
Driven ConfigurationHalf-Bridge
Channel TypeIndependent
Number of Drivers2
Gate TypeN-Channel MOSFET
Voltage - Supply8V ~ 14V
Logic Voltage - VIL, VIH0.8V, 2.2V
Current - Peak Output (Source, Sink)1A, 1A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)108 V
Rise / Fall Time (Typ)15ns, 15ns
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case8-WDFN Exposed Pad
Supplier Device Package8-WSON (4x4)
