LM5109ASDX/NOPB

In Stock: 3,660

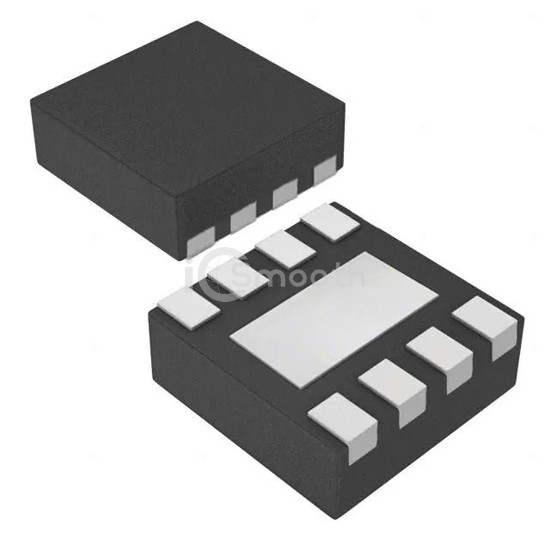

LM5109ASDX/NOPB - Texas Instruments - PMIC - Gate Drivers
REF: LM5109ASDX/NOPB Texas Instruments
LM5109ASDX/NOPB

Texas Instruments

IC GATE DRVR HALF-BRIDGE 8WSON

LM5109ASDX/NOPB is a PMIC - Gate Drivers manufactured by Texas Instruments. IC GATE DRVR HALF-BRIDGE 8WSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 8V ~ 14V, package / case 8-WDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 3,660

Specifications

15 parameters
Product StatusActive
Driven ConfigurationHalf-Bridge
Channel TypeIndependent
Number of Drivers2
Gate TypeN-Channel MOSFET
Voltage - Supply8V ~ 14V
Logic Voltage - VIL, VIH0.8V, 2.2V
Current - Peak Output (Source, Sink)1A, 1A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)108 V
Rise / Fall Time (Typ)15ns, 15ns
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case8-WDFN Exposed Pad
Supplier Device Package8-WSON (4x4)
